Home / Measuring System Cable, 50 V, 0.31 in dia.

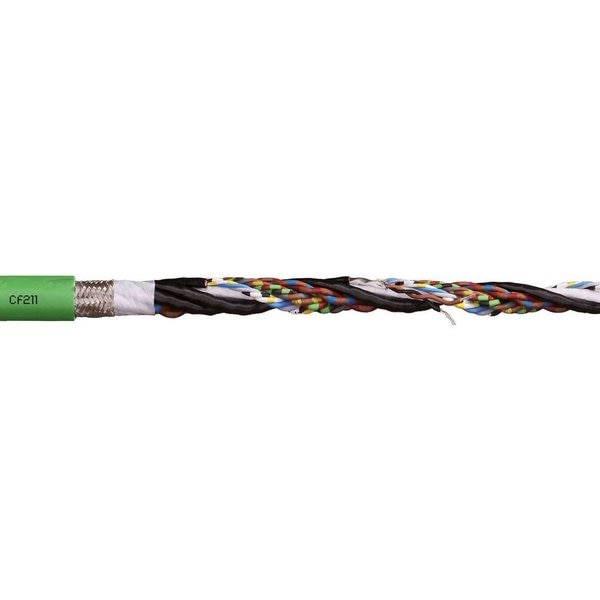

Measuring System Cable, 50 V, 0.31 in dia.

SKU
Brand Chainflex
Categories
Description Measuring System Cable, Conductor Color Code Black/Violet, Blue/Red, Green/Yellow, Grey/Pink, White/Brown, Conductor Grouping (5) Pair 24 AWG (0.25), Conductor Material Copper, Jacket Color Yellow/Green, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 10 fps, Maximum Velocity - Unsupported 16 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD

Web Price

$6.99 / each

Qty

Minimum order: 2

Product Details

(hidden) series builder CF211-036 CHAINFLEX

Cable Series CF211

Conductor Color Code Black/Violet, Blue/Red, Green/Yellow, Grey/Pink, White/Brown

Conductor Grouping (5) Pair 24 AWG (0.25)

Conductor Material Copper

Country of Origin (subject to change) Germany

Jacket Color Yellow/Green

Jacket Material PVC

Length Order by the Foot

Maximum Acceleration 98.4 m/sq sec

Maximum Operating Temperature 158 Degrees F

Maximum Velocity - Supported 10 fps

Maximum Velocity - Unsupported 16 fps

Minimum Bend Radius Factor - E-Chain 10 x OD

Minimum Bend Radius Factor - Fixed 5 x OD

Minimum Bend Radius Factor - Flexible 8 x OD

Minimum Operating Temperature - Fixed 5 Degrees F

Minimum Operating Temperature - Flexible 23 Degrees F

Outside Diameter 0.31 in

Package Quantity 1

Product Type Measuring System Cable

Resistance Properties Oil and Grease Resistant

Shielding Shielded

Standards CE and CEI 20-35, CTP C-DE.PB49.B.00416, DESINA VDW, DNV Type Testing 61 935-14 HH, EAC TC RU C-DE. ME77.B.01559, NFPA 79-2012 Chapter 12.9, UL/CSA AWM

Voltage 50 V
