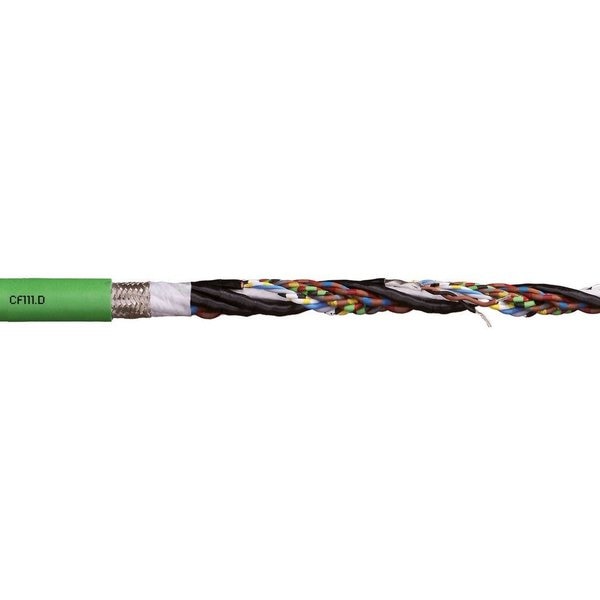

Measuring System Cable, 50 V, 0.37 in dia.

SKU
Brand Chainflex
Categories
Description Measuring System Cable, Conductor Color Code Black-White, Black/White, Blue/Violet Blue-White, Red-White, Red/Orange, Yellow-White, Yellow/Green, Conductor Grouping (4) Pair 22 AWG (0.34)/(4) 20 AWG (0.50), Conductor Material Copper, Jacket Color Yellow/Green, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Supported 10 fps, Maximum Velocity - Unsupported 16 fps
graingerSKU: , mscSKU: , zoro_no: G508259846, mongo_id: 65bbe5b33aaddbd5a9fdebff

Web Price

$8.74 / each

Qty

Minimum order: 2

Product Details

(hidden) series builder CF111-011-D CHAINFLEX

Cable Series CF111-D

Conductor Color Code Black-White, Black/White, Blue/Violet Blue-White, Red-White, Red/Orange, Yellow-White, Yellow/Green

Conductor Grouping (4) Pair 22 AWG (0.34)/(4) 20 AWG (0.50)

Conductor Material Copper

Country of Origin (subject to change) Germany

Jacket Color Yellow/Green

Jacket Material PUR

Length Order by the Foot

Maximum Acceleration 98.4 m/sq sec

Maximum Operating Temperature 176 Degrees F

Maximum Velocity - Supported 10 fps

Maximum Velocity - Unsupported 16 fps

Minimum Bend Radius Factor - E-Chain 10 x OD

Minimum Bend Radius Factor - Fixed 5 x OD

Minimum Bend Radius Factor - Flexible 8 x OD

Minimum Operating Temperature - Fixed -58 Degrees F

Minimum Operating Temperature - Flexible -40 Degrees F

Outside Diameter 0.37 in

Package Quantity 1

Product Type Measuring System Cable

Resistance Properties Coolant Resistant, Oil and Grease Resistant

Shielding Shielded

Standards CE and CEI 20-35, CTP C-DE.PB49.B.00416, DESINA VDW, DNV Type Testing 61 935-14 HH, EAC TC RU C-DE. ME77.B.01559, NFPA 79-2012 Chapter 12.9, UL/CSA AWM

Voltage 50 V
