Home / Measuring System Cable, 50 V, 0.41 in dia.

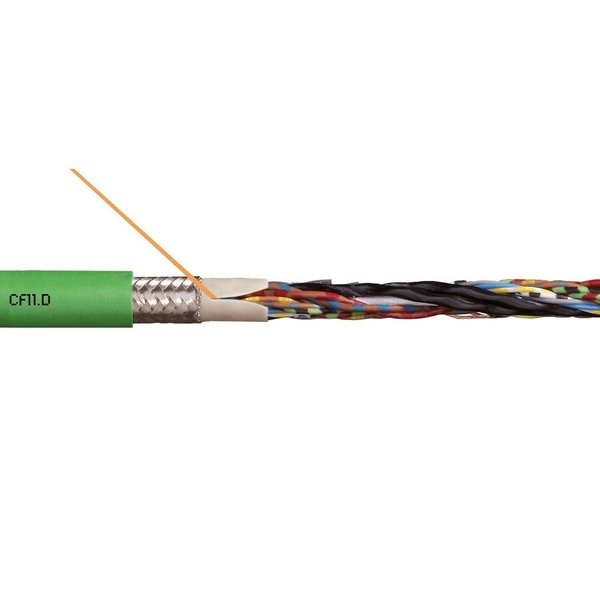

Measuring System Cable, 50 V, 0.41 in dia.

SKU
Brand Chainflex
Categories
Description Measuring System Cable, Conductor Color Code Black/Brown, Green/Yellow, Red/Orange Grey/Blue/White-Yellow/White-Black Brown-Yellow/Brown-Grey/Green-Black/Green-Red Brown-Red/Brown-Blue, Conductor Grouping (3) Shielded Twisted Pair 26 AWG (0.14)/(4) 26 AWG (0.14)/(4) 24 AWG (0.23)/(2) 20 AWG (0.50), Conductor Material Copper, Jacket Color Yellow/Green, Jacket Material TPE, Length Order by the Foot, Maximum Acceleration 328.1 m/sq sec, Maximum Operating Temperature 194 Degrees F
graingerSKU: , mscSKU: , zoro_no: G608259999, mongo_id: 65bbe5f93aaddbd5a9ffbae4

Web Price

$14.24 / each

Qty

Product Details

(hidden) series builder CF11-006-D CHAINFLEX

Cable Series CF11-D

Conductor Color Code Black/Brown, Green/Yellow, Red/Orange Grey/Blue/White-Yellow/White-Black Brown-Yellow/Brown-Grey/Green-Black/Green-Red Brown-Red/Brown-Blue

Conductor Grouping (3) Shielded Twisted Pair 26 AWG (0.14)/(4) 26 AWG (0.14)/(4) 24 AWG (0.23)/(2) 20 AWG (0.50)

Conductor Material Copper

Country of Origin (subject to change) Germany

Jacket Color Yellow/Green

Jacket Material TPE

Length Order by the Foot

Maximum Acceleration 328.1 m/sq sec

Maximum Operating Temperature 194 Degrees F

Maximum Velocity - Supported 20 fps

Maximum Velocity - Unsupported 33 fps

Minimum Bend Radius Factor - E-Chain 7.5 x OD

Minimum Bend Radius Factor - Fixed 4 x OD
