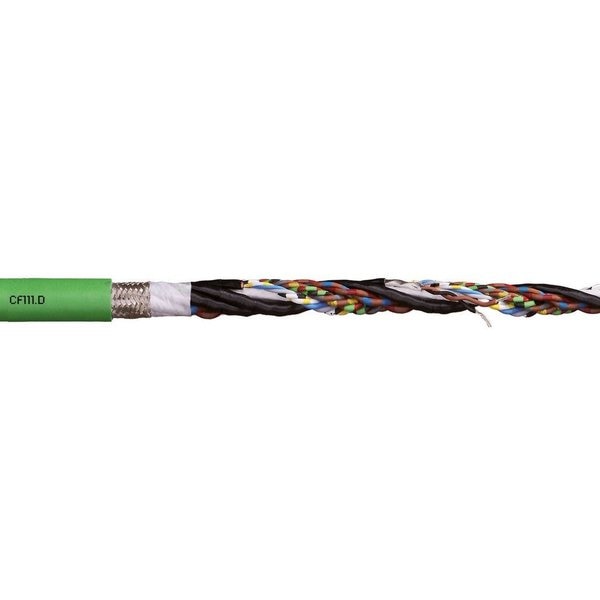

Measuring System Cable, 50 V, 0.41 in dia.

SKU
Brand Chainflex
Categories
Description Measuring System Cable, Conductor Color Code Black/Violet, Blue/Red, Green/Yellow, Grey-Pink/Red-Blue, Grey/Pink, White-Green/Brown-Green White/Brown Blue/Red, Conductor Grouping (6 x (2 x 0.25) + (2 x 0.34) C + (2 x 0.5) C, Conductor Material Copper, Jacket Color Yellow/Green, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Supported 10 fps, Maximum Velocity - Unsupported 16 fps

Web Price

$14.74 / each

Qty

Product Details

(hidden) series builder CF111-026-D CHAINFLEX

Cable Series CF111-D

Conductor Color Code Black/Violet, Blue/Red, Green/Yellow, Grey-Pink/Red-Blue, Grey/Pink, White-Green/Brown-Green White/Brown Blue/Red

Conductor Grouping (6 x (2 x 0.25) + (2 x 0.34) C + (2 x 0.5) C

Conductor Material Copper

Country of Origin (subject to change) Germany

Jacket Color Yellow/Green

Jacket Material PUR

Length Order by the Foot

Maximum Acceleration 98.4 m/sq sec

Maximum Operating Temperature 176 Degrees F

Maximum Velocity - Supported 10 fps

Maximum Velocity - Unsupported 16 fps

Minimum Bend Radius Factor - E-Chain 10 x OD

Minimum Bend Radius Factor - Fixed 5 x OD

Minimum Bend Radius Factor - Flexible 8 x OD

Minimum Operating Temperature - Fixed -58 Degrees F

Minimum Operating Temperature - Flexible -40 Degrees F

Outside Diameter 0.41 in

Package Quantity 1

Product Type Measuring System Cable

Resistance Properties Coolant Resistant, Oil and Grease Resistant

Shielding Shielded

Standards CE and CEI 20-35, CTP C-DE.PB49.B.00416, DESINA VDW, DNV Type Testing 61 935-14 HH, EAC TC RU C-DE. ME77.B.01559, NFPA 79-2012 Chapter 12.9, UL/CSA AWM

Voltage 50 V
