Home / 114PC 118Â° General Purpose Jobber Length Drill Set CL 150 Oxide HSS 1/16-1/2, #1-#60, 1mm-13mm

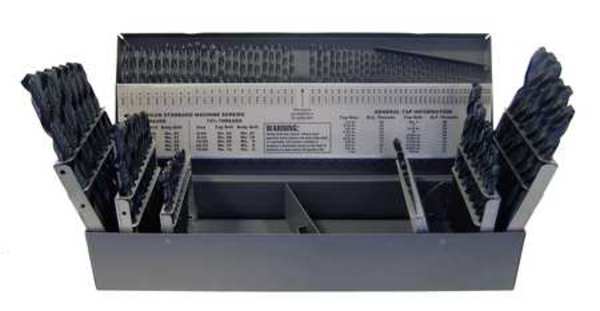

114PC 118Â° General Purpose Jobber Length Drill Set CL 150 Oxide HSS 1/16-1/2, #1-#60, 1mm-13mm

SKU
Brand Chicago-Latrobe
Categories
Description Jobber Drill Bit Set, Number of Drill Bits 114, Drill Bit Point Angle 118 Degrees , Material - Machining High Speed Steel, Finish - Machining Black Oxide
graingerSKU: 6WUA6, mscSKU: , zoro_no: G3705545, mongo_id: 65bbe7ca9a749db8227591b4

Web Price

$516.24 / each

Qty

Product Details

Aircraft Drill No

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) United States

Cutting Direction Right Hand

Depth x Dia. Ratio 4xD

Depth:Dia. Ratio 4xD

Drill Bit Case Type Metal Drill Index

Drill Bit Dimension Type Fractional Inch, Metric

Drill Bit Finish Black Oxide

Drill Bit Grouping Drill Bit Set

Drill Bit Material High Speed Steel

Drill Bit Point Angle 118 Degrees

Drill Bit Point Type Conventional Point

Drill Bit Size #60 to #1, 1.00 mm-13.00 mm by 0.50 mm, 1/16 in -1/2 in by 1/64 in

Drill Bit Sizes Included #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9, 1.00 mm, 1.50 mm, 1/16 in, 1/2 in, 1/4 in, 1/8 in, 10.00 mm, 10.50 mm, 11.00 mm, 11.50 mm, 11/32 in, 11/64 in, 12.00 mm, 12.50 mm, 13.00 mm, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 2.00 mm, 2.50 mm, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3.00 mm, 3.50 mm, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 4.00 mm, 4.50 mm, 5.00 mm, 5.50 mm, 5/16 in, 5/32 in, 5/64 in, 6.00 mm, 6.50 mm, 7.00 mm, 7.50 mm, 7/16 in, 7/32 in, 7/64 in, 8.00 mm, 8.50 mm, 9.00 mm, 9.50 mm, 9/32 in, 9/64 in

Drill Length Class Jobber Length

Finish - Machining Black Oxide

Flute Type Spiral

Includes Metal Drill Index

Largest Drill Bit Size 1/2 in

List Number 150

Material - Machining High Speed Steel

Material Grade - Machining General Purpose

Measurement System Fractional Inch, Metric

Number of Drill Bits 114

Number of Pieces 114

Package Quantity 1

Point Type Conventional Point

Primary Material Application All Materials

Shank Dia. #60 to #1, 1.00 to 13.00 mm, 1/16 in to 1/2 in, A to Z

Shank Type - Machining Straight

Sizes Included 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2, #60-#1, 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm, 13.00mm

Smallest Drill Bit Size 1/16 in

Standards ASME B94.11M-1993,DIN 338
