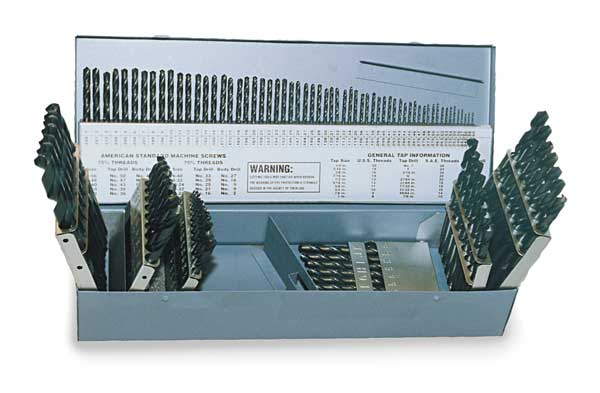

118PC 118Â° General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS 1mm-13mmx.1mm

SKU
Brand Chicago-Latrobe
Categories
Description Jobber Drill Bit Set, Number of Drill Bits 118, Drill Bit Point Angle 118 Degrees , Material - Machining High Speed Steel, Finish - Machining Black Oxide
graingerSKU: null, mscSKU: null, zoro_no: G3264764, mongo_id: 65bbe6003aaddbd5a9ffe865

Web Price

$708.74 / each

Qty

Product Details

Aircraft Drill No

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) United States

Cutting Direction Right Hand

Depth x Dia. Ratio 4xD

Depth:Dia. Ratio 4xD

Drill Bit Case Type Metal Drill Index

Drill Bit Dimension Type Metric

Drill Bit Finish Black Oxide

Drill Bit Grouping Drill Bit Set

Drill Bit Material High Speed Steel

Drill Bit Point Angle 118 Degrees

Drill Bit Point Type Conventional Point

Drill Bit Size 1.00 mm-13.00 mm by 0.10 mm

Drill Bit Sizes Included 1.10 mm, 1.20 mm, 1.30 mm, 1.40 mm, 1.50 mm, 1.60 mm, 1.70 mm, 1.80 mm, 1.90 mm, 10.10 mm, 10.20 mm, 10.30 mm, 10.40 mm, 10.50 mm, 10.60 mm, 10.70 mm, 10.80 mm, 10.90 mm, 11.00 mm, 11.10 mm, 11.20 mm, 11.30 mm, 11.40 mm, 11.50 mm, 11.60 mm, 11.70 mm, 11.80 mm, 11.90 mm, 12.00 mm, 12.10 mm, 12.20 mm, 12.30 mm, 12.40 mm, 12.50 mm, 12.60 mm, 12.70 mm, 12.80 mm, 12.90 mm, 13.00 mm, 2.00 mm, 2.10 mm, 2.20 mm, 2.30 mm, 2.40 mm, 2.50 mm, 2.60 mm, 2.70 mm, 2.80 mm, 2.90 mm, 3.00 mm, 3.10 mm, 3.20 mm, 3.30 mm, 3.40 mm, 3.50 mm, 3.60 mm, 3.70 mm, 3.80 mm, 3.90 mm, 4.00 mm, 4.10 mm, 4.20 mm, 4.30 mm, 4.40 mm, 4.50 mm, 4.60 mm, 4.70 mm, 4.80 mm, 4.90 mm, 5.00 mm, 5.10 mm, 5.20 mm, 5.30 mm, 5.40 mm, 5.50 mm, 5.60 mm, 5.70 mm, 5.80 mm, 5.90 mm, 6.00 mm, 6.10 mm, 6.20 mm, 6.40 mm, 6.50 mm, 6.60 mm, 6.70 mm, 6.80 mm, 6.90 mm, 7.00 mm, 7.10 mm, 7.20 mm, 7.30 mm, 7.40 mm, 7.50 mm, 7.60 mm, 7.70 mm, 7.80 mm, 7.90 mm, 8.00 mm, 8.10 mm, 8.20 mm, 8.30 mm, 8.40 mm, 8.50 mm, 8.60 mm, 8.70 mm, 8.80 mm, 8.90 mm, 9.00 mm, 9.10 mm, 9.20 mm, 9.30 mm, 9.40 mm, 9.50 mm, 9.60 mm, 9.70 mm, 9.80 mm, 9.90 mm

Drill Length Class Jobber Length

Drill Style Jobber Drill

Finish - Machining Black Oxide

Flute Type Spiral

Includes Metal Drill Index

Largest Drill Bit Size 13.00 mm

Left/Right Hand Right

List Number 150

Material HSS

Material - Machining High Speed Steel

Material Grade - Machining General Purpose

Measurement System Metric

Number of Drill Bits 118

Number of Pieces 118

Package Quantity 1

Point Angle 118

Point type Conventional Point

Primary Material Application All Materials

Shank Dia. 0.0394 in to 0.5118 in

Shank Type Straight

Shank Type - Machining Straight

Size Range 1mm-13mm

Sizes Included 1.00mm, 1.20mm, 1.30mm, 1.40mm, 1.50mm, 1.60mm, 1.70mm, 1.80mm, 1.90mm, 2.00mm, 2.10mm, 2.20mm, 2.30mm, 2.40mm, 2.50mm, 2.60mm, 2.70mm, 2.80mm, 2.90mm, 3.00mm, 3.10mm, 3.20mm, 3.30mm, 3.40mm, 3.50mm, 3.60mm, 3.70mm, 3.80mm, 3.90mm, 4.00mm, 4.10mm, 4.20mm, 4.30mm, 4.40mm, 4.50mm, 4.60mm, 4.70mm, 4.80mm, 4.90mm, 5.00mm, 5.10mm, 5.20mm, 5.30mm, 5.40mm, 5.50mm, 5.60mm, 5.70mm, 5.80mm, 5.90mm, 6.00mm, 6.10mm, 6.20mm, 6.30mm, 6.40mm, 6.50mm, 6.60mm, 6.70mm, 6.80mm, 6.90mm, 7.00mm, 7.10mm, 7.20mm, 7.30mm, 7.40mm, 7.50mm, 7.60mm, 7.70mm, 7.80mm, 7.90mm, 8.00mm, 8.10mm, 8.20mm, 8.30mm, 8.40mm, 8.50mm, 8.60mm, 8.70mm, 8.80mm, 8.90mm, 9.00mm, 9.10mm, 9.20mm, 9.30mm, 9.40mm, 9.50mm, 9.60mm, 9.70mm, 9.80mm, 9.90mm, 10.00mm, 10.10mm, 10.20mm, 10.30mm, 10.40mm, 10.50mm, 10.60mm, 10.70mm, 10.80mm, 10.90mm, 11.00mm, 11.10mm, 11.20mm, 11.30mm, 11.40mm, 11.50mm, 11.60mm, 11.70mm, 11.80mm, 11.90mm, 12.00mm, 12.10mm, 12.20mm, 12.30mm, 12.40mm, 12.50mm, 12.60mm, 12.70mm, 12.80mm, 12.90mm, 13.00mm

Smallest Drill Bit Size 1.00 mm

Standards DIN 338
