Home / Steam Trap, 750F, 316L Stainless Steel

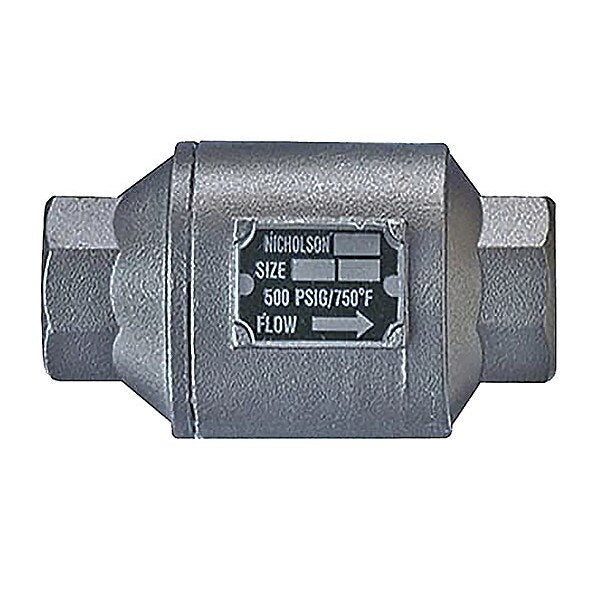

Steam Trap, 750F, 316L Stainless Steel

SKU
Brand Crescent Nicholson
Categories
Description Steam Trap, (F)NPT Connections 3/4 in, Max. Operating PSI 650 psi, End to End Length 3 15/16 in, Condensate Capacity Lbs/Hr 6,625 lb/hr, Max. Temp. 750 Degrees F, Type Thermostatic, Downstream PSI Range 0 to 650 psi, Body Material 316L Stainless Steel, NPT Inlet 3/4 in, NPT Outlet 3/4 in, Disc Material 416 Stainless Steel, Pipe Configuration Straight
graingerSKU: , mscSKU: , zoro_no: G1500177, mongo_id: 65bbe9a522d7a989a996c1e0

Web Price

$603.74 / each

Qty

Product Details

(F)NPT Connections 3/4 in

Application Unit Heaters, Air Vents, Steam Tracing, Drip Legs, Sterilizers, Platen Presses, Tire Presses, Plating Tanks, Cooking Equipment, Laundry Equipment and Other Process Equipment

Body Material 316L Stainless Steel

Condensate Capacity Lbs/Hr 6,625 lb/hr

Country of Origin (subject to change) United States

Disc Material 416 Stainless Steel

Downstream PSI Range 0 to 650 psi

End to End Length 3 15/16 in

Includes Actuator

Max. Operating PSI 650 psi

Max. Temp. 750 Degrees F

NPT Inlet 3/4 in

NPT Outlet 3/4 in

Package Quantity 1
