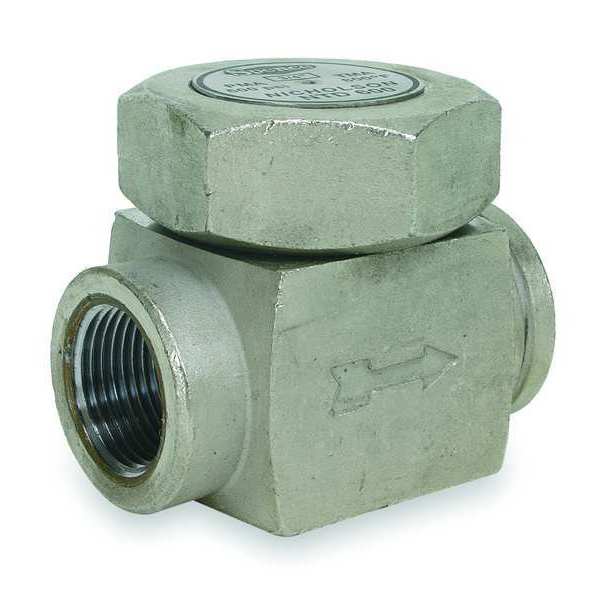

Home / Steam Trap, 800F, Stainless Steel, 600 psi

Steam Trap, 800F, Stainless Steel, 600 psi

SKU
Brand Crescent Nicholson
Categories
Description Steam Trap, (F)NPT Connections 1 in, Max. Operating PSI 600 psi, End to End Length 3 5/16 in, Condensate Capacity Lbs/Hr 4,700 lb/hr, Max. Temp. 800 Degrees F, Type Thermodynamic, Downstream PSI Range 600 psi, Body Material Stainless Steel, NPT Inlet 1 in, NPT Outlet 1 in, Disc Material Stainless Steel, Pipe Configuration Straight
graingerSKU: 4DXN1, mscSKU: , zoro_no: G2703312, mongo_id: 65bbe6d33aaddbd5a90575bc

Web Price

$454.99 / each

Qty

Product Details

(F)NPT Connections 1 in

Application Drains Steam Mains, Unit Heaters, Blast Coils, Heat Exchangers and for all Process Applications Requiring Removal of Condensate as Quickly as it is Formed, Particularly when Controlled by Modulating Temperature or Pressure Control Valves

Body Material Stainless Steel

Condensate Capacity Lbs/Hr 4,700 lb/hr

Country of Origin (subject to change) India

Disc Material Stainless Steel

Downstream PSI Range 600 psi

End to End Length 3 5/16 in

Max. Operating PSI 600 psi

Max. Temp. 800 Degrees F

NPT Inlet 1 in

NPT Outlet 1 in

Package Quantity 1

Pipe Configuration Straight
