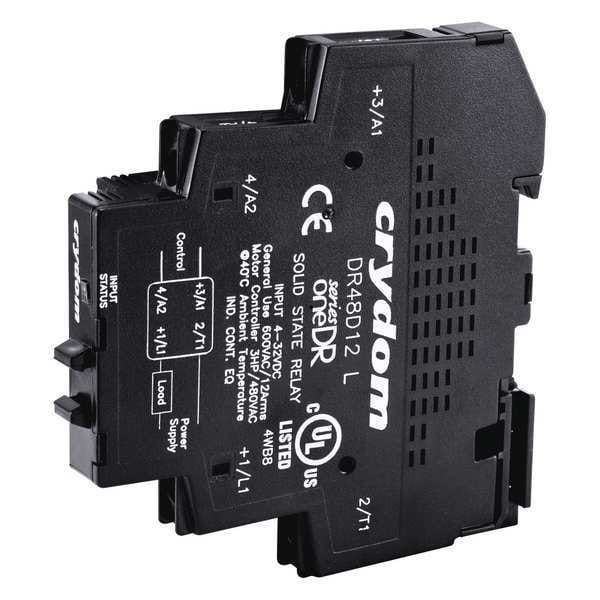

Solid State Relay, 4 to 32VDC, 12A

SKU
Brand Crydom
Categories
Description Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 11 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 12 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Not Applicable, Output Voltage Range 1 to 100V DC, Standards CE Certified, RoHS Compliant, UL 508 Endurance Rating for Enhanced Reliability, UL and cUL Listed, UL Class I and II, Division 2, for Hazardous Locations, Switch Component Type FET, Current Type DC
graingerSKU: 21R960, mscSKU: , zoro_no: G4476832, mongo_id: 65bbe8ab22d7a989a990b1eb

Web Price

$106.06 / each

Qty

Product Details

Body Depth 3.17 in

Body Depth - Relay 0.72 in

Body Height 3.45 in

Body Height - Relay 3.3 in

Body Width 0.72 in

Body Width - Relay 3.45 in

Case Color Black

Contact Form - Relay SPST-NO

Country of Origin (subject to change) Mexico

Current Type DC

Dielectric Strength 2,500V AC

Drop Out Voltage 0.6V DC

Electrical Connection Screw Clamp

Electrical Connection Type Screw

Finger Safe Yes

Heat Sink Integral

Input Current 11 mA

Input or Control Voltage 4 to 32V DC

Input or Control Voltage Range 4 to 32VDC

Input Power Consumption (Burden) 0.1W

Input Voltage 4 to 32V DC

Insulation Resistance 1,000 megaohm

Item - Relay Solid State Relay

Max. Output Amps w/Heat Sink 12 A

Max. Output Amps Without Heat Sink 12.0 A Integral Heat Sink

Max. Output w/Heat Sink 12A

Maximum Capacitance 10 pF

Maximum Operating Temperature 176 Degrees F

Maximum Output Current with Heat Sink 12 A

Maximum Output Current without Heat Sink 12 A

Maximum Switching Voltage 100V DC

Minimum Operating Temperature -22 Degrees F

Mounting DIN

Mounting - Relay DIN Rail

Mounting Style DIN Rail

NEC Hazardous Location Classification Class II, Division 2

Output or Controlled Voltage Range 2 to 100V DC

Output Switching Mode Not Applicable

Output Voltage Range 1 to 100V DC

Overall Depth 3.3 in

Overall Height - Relay 3.3 in

Package Quantity 1

Phase 3

Relay Mounting Style DIN-Rail

Response Time 0.6 msec

Series SeriesOne DR Series

Standards CE Certified, RoHS Compliant, UL 508 Endurance Rating for Enhanced Reliability, UL and cUL Listed, UL Class I and II, Division 2, for Hazardous Locations

Status Indicator LED Indicator

Switch Component Type FET

Switch Configuration Form A

Switch Type MOSFET

Voltage Output 2 to 100VDC

Voltage Type DC Output

Weight 3.17 oz
