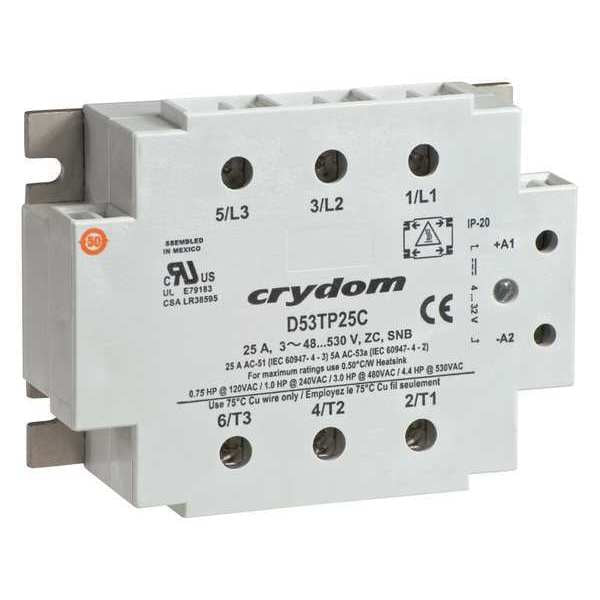

Solid State Relay, 4 to 32VDC, 25A

SKU
Brand Crydom
Categories
Description Solid State Relay, Electrical Connection Saddle Clamp; Screw, Heat Sink Integral, Input Current 35 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC
graingerSKU: 21R951, mscSKU: , zoro_no: G4476744, mongo_id: 65bbea2822d7a989a999a978

Web Price

$354.99 / each

Qty

Product Details

Body Depth 2.89 in

Body Depth - Relay 2.89 in

Body Height 3.2 in

Body Height - Relay 0.79 in

Body Width 4.09 in

Body Width - Relay 4.09 in

Case Color Gray

Contact Form - Relay (3) SPST-NO

Country of Origin (subject to change) Mexico

Current Type DC

Dielectric Strength 4,000V AC

Drop Out Voltage 1.35V DC

Electrical Connection Saddle Clamp; Screw

Electrical Connection Type Screw

Electrical Phase Three

Finger Safe Yes

Frequency 50/60 Hz

Heat Sink Integral

Horsepower @ 240V AC 1 hp

Includes Thermal Pad

Includes Thermal Pad Yes

Input Current 35 mA

Input or Control Voltage 4 to 32V DC

Input or Control Voltage Range 4 to 32VDC

Input Power Consumption (Burden) 0.3W

Input Voltage 4 to 32V DC

Insulation Resistance 1,000 megaohm

IP Rating IP20

Item - Relay Solid State Relay

Max. Output Amps w/Heat Sink 25 A

Max. Output Amps Without Heat Sink Not Recommended

Max. Output w/Heat Sink 25A

Maximum Capacitance 8 pF

Maximum Operating Temperature 176 Degrees F

Maximum Output Current with Heat Sink 25 A

Maximum Output Current without Heat Sink Not Recommended

Minimum Operating Temperature -40 Degrees F

Mounting Surface

Mounting - Relay Surface

Mounting Style Panel

Output or Controlled Voltage Range 48 to 530V AC

Output Switching Mode Zero Crossing

Output Voltage Range 48 to 530V AC

Overall Depth 1.45 in

Overall Height - Relay 1.18 in

Package Quantity 1

Phase 3

Power Factor 0.5

Relay Mounting Style Surface

Relay Turns On At Zero Crossing

Response Time 0.1 msec

Series 53TP Series

Standards EN60950: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7, IEC 1000-4-2, IEC 1000-4-3, IEC 1000-4-4, IEC 1000-4-5, IEC 1000-4-6, IEC 60068-2-27, IEC 60068-2-6, IEC 62314

Status Indicator LED Indicator

Switch Component Type SCR

Switch Configuration Form A

Switch Type SCR

Turns On At Zero Cross

Voltage Output 48 to 530VAC

Voltage Type AC Output

Weight 13.1 oz
