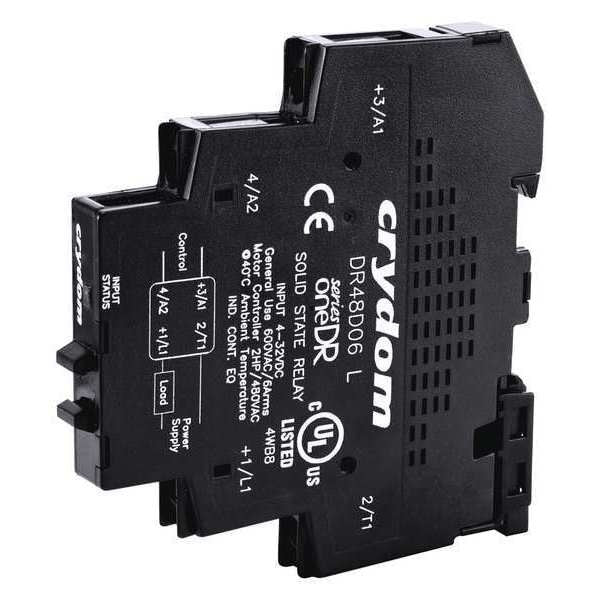

Solid State Relay, 4 to 32VDC, 6A

SKU
Brand Crydom
Categories
Description Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 11 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 6 A, Maximum Output Current without Heat Sink 6 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards UL 508 Endurance Rating for Enhanced Reliability, UL and cUL Listed, HP Rated, CE & RoHS Compliant, UL Class I and II, Division 2, for Hazardous Locations, Switch Component Type SCR, Current Type AC
graingerSKU: 21R965, mscSKU: , zoro_no: G4476936, mongo_id: 65bbe91d22d7a989a993605c

Web Price

$82.49 / each

Qty

Product Details

Body Depth 3.17 in

Body Depth - Relay 0.43 in

Body Height 3.45 in

Body Height - Relay 3.3 in

Body Width 0.43 in

Body Width - Relay 3.45 in

Case Color Black

Contact Form - Relay SPST-NO

Country of Origin (subject to change) Mexico

Current Type AC

Dielectric Strength 4,000V AC

Drop Out Voltage 1.3V DC

Electrical Connection Screw Clamp

Electrical Connection Type Screw

Finger Safe Yes

Frequency 50/60 Hz

Heat Sink Integral

Horsepower @ 240V AC 1/2 hp

Input Current 11 mA

Input or Control Voltage 4 to 32V DC

Input or Control Voltage Range 4 to 32VDC

Input Power Consumption (Burden) 0.1W

Input Voltage 4 to 32V DC

Insulation Resistance 1,000 megaohm

Item - Relay Solid State Relay

Max. Output Amps w/Heat Sink 6 A

Max. Output Amps Without Heat Sink 6.0 A Integral Heat Sink

Max. Output w/Heat Sink 6A

Maximum Capacitance 10 pF

Maximum Operating Temperature 176 Degrees F

Maximum Output Current with Heat Sink 6 A

Maximum Output Current without Heat Sink 6 A

Maximum Switching Voltage 280V AC

Minimum Operating Temperature -22 Degrees F

Mounting DIN

Mounting - Relay DIN Rail

Mounting Style DIN Rail

NEC Hazardous Location Classification Class II, Division 2

Output or Controlled Voltage Range 24 to 280V AC

Output Switching Mode Zero Crossing

Output Voltage Range 24 to 280V AC

Overall Depth 3.3 in

Overall Height - Relay 3.3 in

Package Quantity 1

Phase 3

Power Factor 0.5

Relay Mounting Style DIN-Rail

Relay Turns On At Zero Crossing

Response Time 0.5 msec

Series SeriesOne DR Series

Standards UL 508 Endurance Rating for Enhanced Reliability, UL and cUL Listed, HP Rated, CE & RoHS Compliant, UL Class I and II, Division 2, for Hazardous Locations

Status Indicator LED Indicator

Switch Component Type SCR

Switch Configuration Form A

Switch Type SCR

Turns On At Zero Cross

Voltage Output 24 to 280VAC

Voltage Type AC Output

Weight 1.76 oz
