Home / Fuel Injection Hose, ID 5/16 In

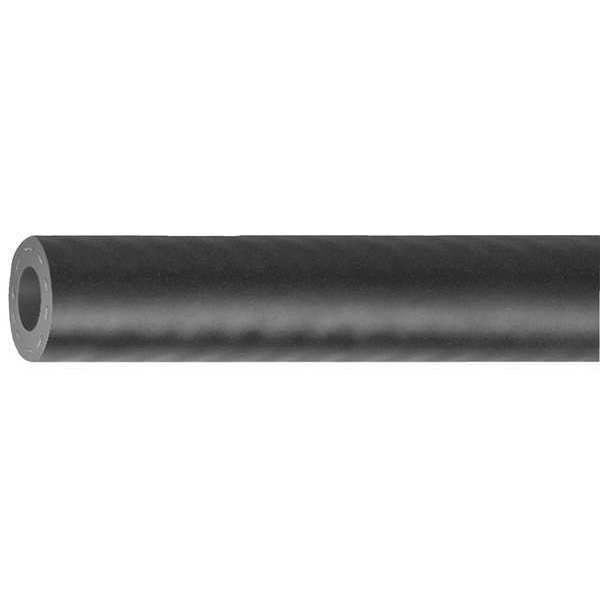

Fuel Injection Hose, ID 5/16 In

SKU
Brand Dayco
Categories
Description Fuel Injection Hose, Hose Inside Dia. 5/16 in, Hose Outside Dia. 9/16 in, Hose Length 25 ft, Hose Tube Material FKM, Hose Cover Material Neoprene, Hose Reinforcement Type Braid, Hose Reinforcement Material Fiber, Hose Color Black, Max. Working Pressure @ 70 F 100 psi, Temp. Range -30 Degrees to 300 Degrees F, Standards SAE J30R9, Hose Configuration Bulk Hose
graingerSKU: 4GJW5, mscSKU: , zoro_no: G1411742, mongo_id: 65bbee36526e052139af942c

Web Price

$236.24 / each

Qty

Product Details

Color Black

Compatible Chemicals Diesel Fuel, Fresh Water, Gasoline, Motor Oil

Country of Origin (subject to change) China

For Media Type Diesel Fuel, Gasoline, Motor Oil, Water

For Use With Fuel

Hose Color Black

Hose Configuration Bulk Hose

Hose Cover Material Neoprene

Hose Inside Dia. 5/16 in

Hose Length 25 ft

Hose Outside Dia. 9/16 in

Hose Reinforcement Material Fiber

Hose Tube Material FKM

Inside Dia. (In.) 5/16

Length 25 ft.

Material Fluoro-Elastomer

Max. Working Pressure @ 70 F 100 psi

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Xylene

Outside Dia. (In.) 0.56

Package Quantity 1

Standards SAE J30R9

Temp. Range -30 Degrees to 300 Degrees F

Type Coil

Working Pressure (PSI) 100
