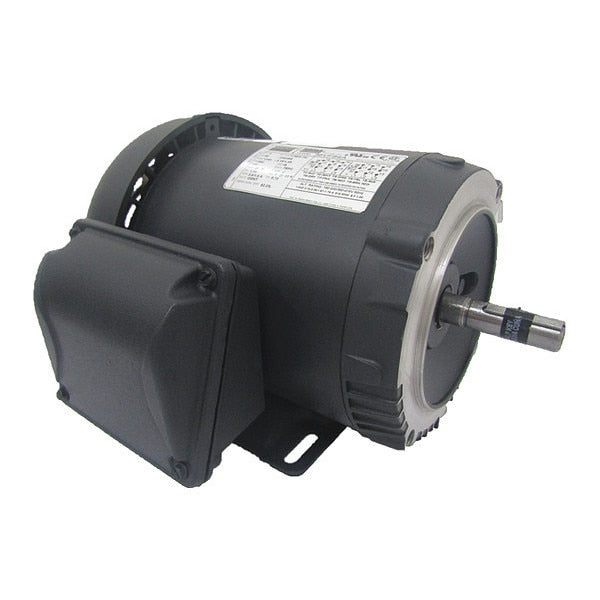

3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM

3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,145 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,145, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.3/1.6 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: , mscSKU: , zoro_no: G1860376, mongo_id: 65bbe98022d7a989a995c48c

Web Price
$584.99 / each
Qty

Product Details

No
CC029A
Mexico
Continuous
Continuous
5, 15, 56
56C
Rolled steel
3.3/1.6 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
1
60 Hz
F
Yes
11 5/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Premium Efficient
Totally Enclosed Fan-Cooled
Rolled Steel
Horizontal
Face/Base
1.15
Keyed
CW/CCW
None
1,145
1
82.5 %
13 1/2 in
1
Three
1101-1200
1,101-1,200
5/8 in
1 7/8 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
