Home / 3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

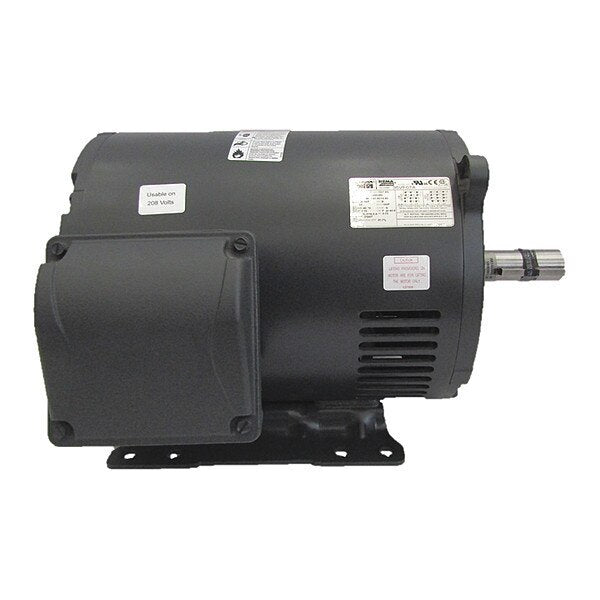

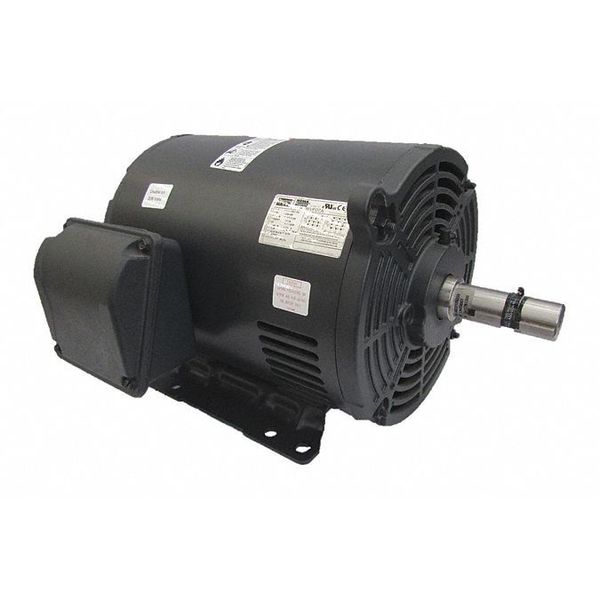

3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM
3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 254/6T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 27.8/13.9 A, 254/6T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: , mscSKU: , zoro_no: G1578711, mongo_id: 65bbe6cf3aaddbd5a9055f6e

Web Price
$2,084.99 / each
Qty

Product Details

No
CC029A
Mexico
Continuous
Continuous
2,15,56
254/6T
Rolled steel
27.8/13.9 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
10 hp
60 Hz
Conduit Box
F
Yes
16 1/2 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,180
1
91.7 %
20 1/2 in
1
Three
1101-1200
1,101-1,200
1 5/8 in
4 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
