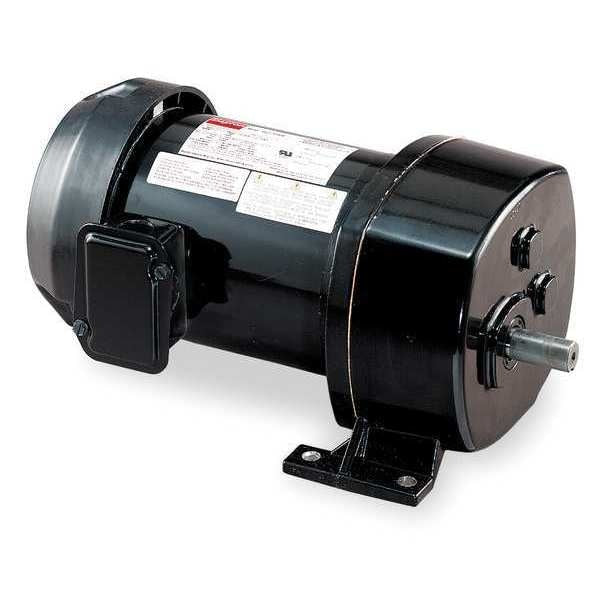

Home / AC Gearmotor, 1,087.0 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
AC Gearmotor, 1,087.0 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
AC Gearmotor, 1,087.0 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
AC Gearmotor, 1,087.0 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

AC Gearmotor, 1,087.0 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Dayton
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 5.4 RPM, Maximum Torque 1,087 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated Yes, Gear Ratio 316:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9

    graingerSKU: 6Z399, mscSKU: , zoro_no: G2879091, mongo_id: 65bbea2f22d7a989a999cc02

Web Price
$1,328.74 / each
Qty

Product Details

Class 9
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Adaptable to 4Z447
None
United States
TEFC
60 Hz
4
4 A
Die Cast Aluminum
Hardened Steel
316:1
Helical (1st Stage), Spur (Subsequent Stages)
None
Totally Enclosed Fan-Cooled
All Angle
1
CW/CCW
Parallel
Single
AC Gearmotor
115V AC
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Die Cast Aluminum
Die Cast Aluminum
60 Hz
0.25 hp
1/4 hp
Yes
315:1
0 in
Rounded
3/16 mm
12.31 in
Permanent Heavy Duty Gear Oil
40 Degrees C
1,087 in-lb
104 Degrees F
1,087 in-lb
Totally Enclosed Fan-Cooled
Split-Phase
2.5 in
7.13 in
Any Position
All Position
Any Angle
5.4 RPM
5.4 RPM
1
115V AC
3/4 in
3 in
1 1/2 in
6.63 in
8.13 in
325 lb
325 ft-lb
1
Single
CW/CCW
0 to 15
Lip Type on Input and Output Shaft
Lip Type on Input and Output Shaft
3/4 in
1.5 in_x000D_
Parallel
CSA Certified, UL Recognized
None
115
