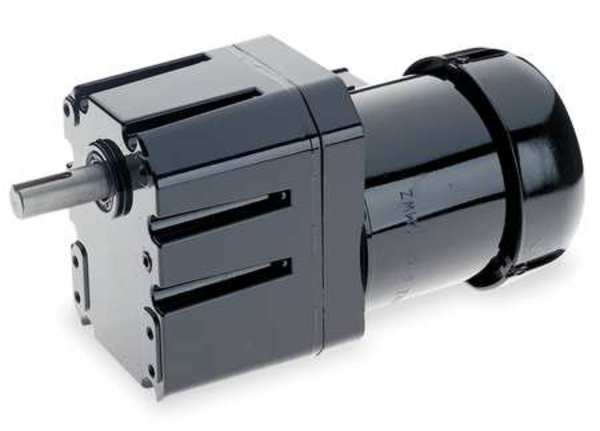

AC Gearmotor, 345.0 in-lb Max. Torque, 81 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
AC Gearmotor, 345.0 in-lb Max. Torque, 81 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
AC Gearmotor, 345.0 in-lb Max. Torque, 81 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

AC Gearmotor, 345.0 in-lb Max. Torque, 81 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Dayton
  • AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 81 RPM, Maximum Torque 345 in-lb, Overhung Load Capacity 550 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated Yes, Gear Ratio 20:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9

    graingerSKU: 2H606, mscSKU: , zoro_no: G2306376, mongo_id: 65bbea5822d7a989a99ab0fc

Web Price
$1,638.74 / each
Qty

Product Details

Class 9
Ball on Motor, Needle Throughout with Thrust Balls on Case
Ball on Motor, Needle Throughout with Thrust Balls on Case
None
Yes
United States
5.2/2.8 in
5.61
6.76
15.1
TEFC
50 Hz, 60 Hz
5.2/2.8
5.2/2.8 A
Die Cast Aluminum
Hardened Steel
20:1
Helical (1st Stage), Spur (Subsequent Stages)
None
Totally Enclosed Fan-Cooled
All Angle
1
CW/CCW
Parallel
Single
AC Gearmotor
115/230V AC
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Die Cast Aluminum
Die Cast Aluminum
60/50 Hz
0.5 hp
1/2 hp
Yes
20:1
3/16 in
1/8 in
16 in
Permanent Heavy Fluid Gear Oil
40 Degrees C
345 in-lb
104 Degrees F
345 in-lb
Totally Enclosed Fan-Cooled
Permanent Split Capacitor
3.63 in
Any Position
All Position
Any Angle
81 RPM
81 RPM
1
115/230V AC
3/4 in
1 7/8 in
6.25 in
4.78 in
550 lb
550 ft-lb
1
Single
CW/CCW
76 to 100
Spring Loaded Lip Type on Input and Output Shaft
Spring Loaded Lip Type on Input and Output Shaft
3/4 in
1.88
Parallel
CSA Certified, UL Recognized
None
115/230
