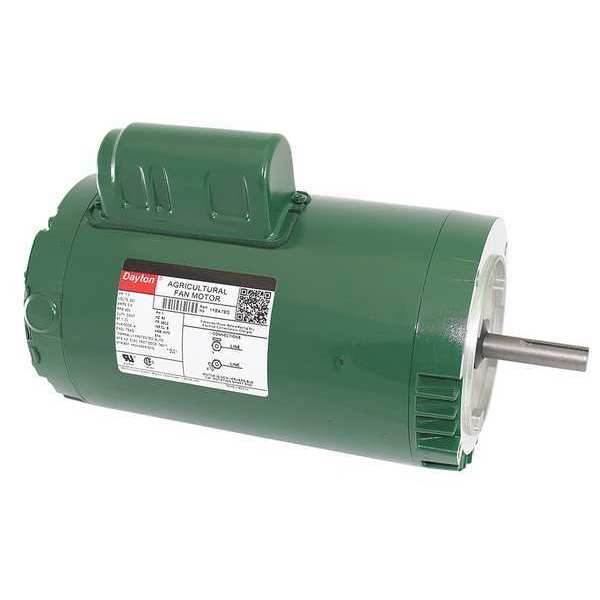

Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame

SKU
Brand Dayton
Categories
Description Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.8 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Finish Green
graingerSKU: 1YBA7, mscSKU: , zoro_no: G0918547, mongo_id: 65bbea1722d7a989a9995c9e

Web Price

$902.49 / each

Qty

Product Details

Application Farm Duty

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous Air Over

Duty Cycle Continuous

Finish Green

Frame 56CZ

Frame Material Rolled steel

Full Load Amps 5.8 A

HP_ 1

Hz_ 60 Hz

Includes Shaft Slinger, Gasketed Capacitor Cover

Ins. Class B

Item - Farm Duty Motors Agricultural Fan Motor

Length Less Shaft 11 3/8 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Rolled Steel

Motor Mounting Position All Angle

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW

Motor Sub Application Agricultural Fan

Motor Thermal Protection Auto

Nameplate RPM 850

No. of Speeds 1

Nominal Efficiency 70.2 %

Overall Length 13 7/8 in

Package Quantity 1

Phase Single

Replacement For 6GD02

RPM Range 0-1,000

Shaft Dia. 5/8 in

Shaft Length 2 1/2 in

Standards CSA Certified (258501), UL Recognized (E37403)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
