Home / Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

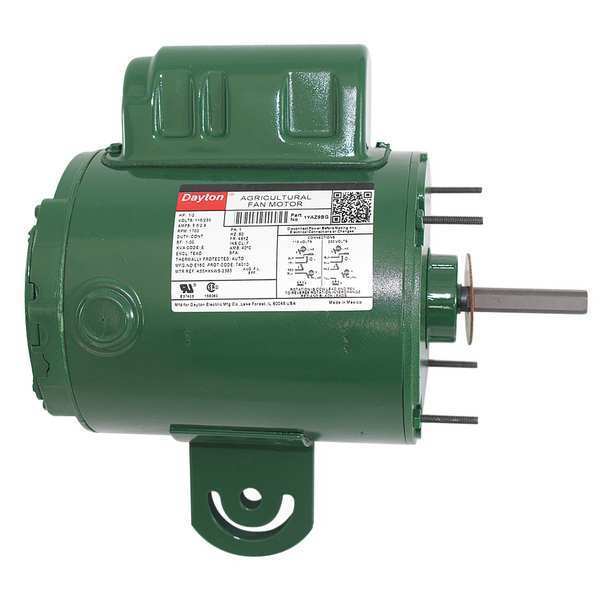

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

  • Dayton
  • Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,700, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.5/2.8 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel

    graingerSKU: 1YAZ9, mscSKU: , zoro_no: G0715023, mongo_id: 65bbe6d03aaddbd5a90560a8

Web Price
$413.74 / each
Qty

Product Details

Farm Duty
Included
Mexico
Continuous Air Over
Continuous
Green
48YZ
Rolled steel
5.5/2.8 A
1/2
60 Hz
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
F
Agricultural Fan Motor
8 1/16 in
40 Degrees C
40 Degrees C
Farm Duty
Ball
Permanent Split Capacitor
Totally Enclosed Air-Over
Rolled Steel
All Angle
Yoke
1
Double-Flat
CW/CCW
Agricultural Fan
Auto
1,700
1
69.6 %
10 9/16 in
1
Single
4M256
1,601-1,700
1/2 in
2 1/2 in
CSA Certified (258501), UL Recognized (E37403)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
