Home / Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,725 Nameplate RPM

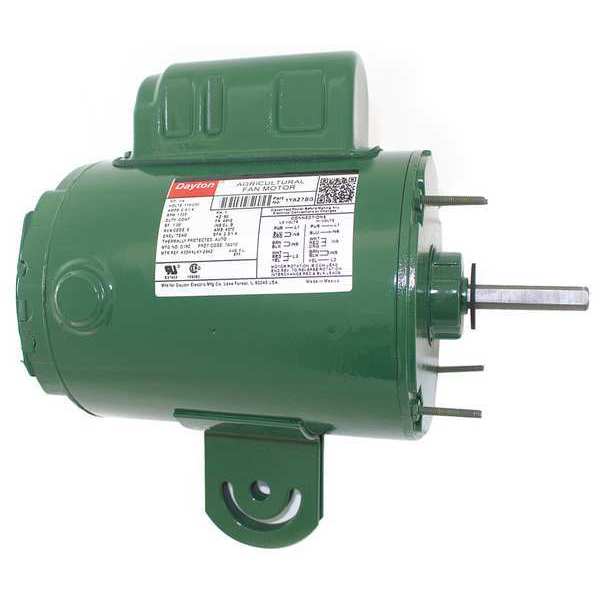

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,725 Nameplate RPM

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,725 Nameplate RPM

  • Dayton
  • Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.3/1.4 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel

    graingerSKU: 1YAZ7, mscSKU: , zoro_no: G3244701, mongo_id: 65bbe7133aaddbd5a9072b43

Web Price
$383.74 / each
Qty

Product Details

Included
Mexico
Continuous Air Over
Continuous
Green
48YZ
Rolled steel
2.3/1.4 A
1/4
60 Hz
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
B
Agricultural Fan Motor
8 1/16 in
40 Degrees C
40 Degrees C
Farm Duty
Ball
Permanent Split Capacitor
Totally Enclosed Air-Over
Rolled Steel
All Angle
Yoke
1
Double-Flat
CW/CCW
Agricultural Fan
Auto
1,725
1
68.5 %
10 1/2 in
1
Single
1,701-1,800
1/2 in
2 7/16 in
CSA Certified (258501), UL Recognized (E37403)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
