Home / C-Frame Motor, Shaded Pole, 3/4, 2 In. L

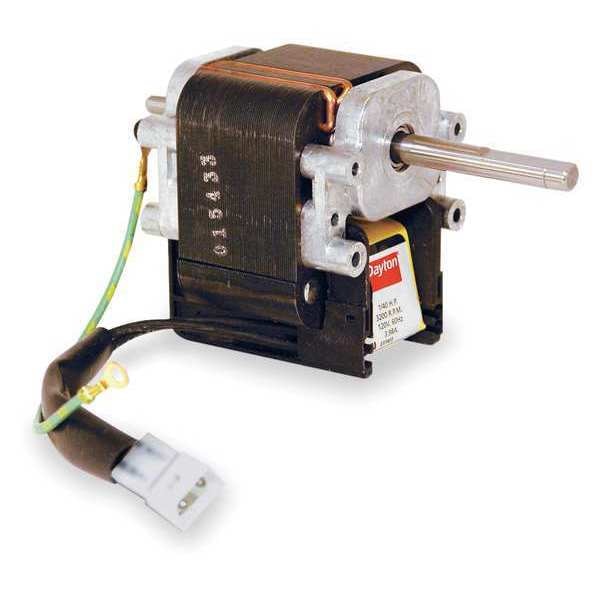

C-Frame Motor, Shaded Pole, 3/4, 2 In. L

SKU
Brand Dayton
Categories
Description C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/40 HP, Nameplate RPM 3,200, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.9 A, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection One-Shot, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Mounting Position All Angle, Number of Shafts 1
graingerSKU: null, mscSKU: null, zoro_no: G2022824, mongo_id: 65bbe5d13aaddbd5a9fea3d7

Web Price

$78.99 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Capacitor Required No

Cord Length 5 in

Country of Origin (subject to change) Viet Nam

Frame Non-Standard

Frequency 60 Hz

Full Load Amps 1.9 A

HP_ 1/40

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 2 5/8 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Shaded Pole

Motor Enclosure Design Open Air-Over

Motor Mounting Position All Angle

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Rotation CWSE

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection One-Shot

Mounting Face

Nameplate RPM 3,200

No. of Speeds 1

Number of Shafts 1

Number of Speeds 1

O.C. Mounting 1-7/8 in

Package Quantity 1

Phase Single

Plug Type Molex 2 Pin

RPM Range 3,001-3,600

Shaft Dia. 1/4 in, 5/16 in

Shaft Length 3/4 in, 2 in

Stack Size 1 1/2 in

Standards CSA Certified, UL (E37403/E47479)

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
