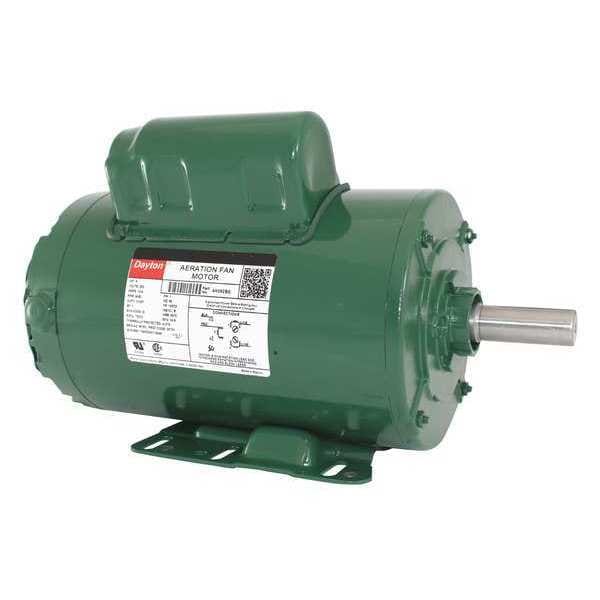

Capacitor-Start Aeration Fan Motor, 3 HP, 230V AC Voltage, 145TZ Frame, 3,450 Nameplate RPM

SKU
Brand Dayton
Categories
Description Aeration Fan Motor, Single Phase, Motor Design Capacitor-Start, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 230V AC, Full Load Amps 14.9 A, 145TZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Finish Enamel
graingerSKU: 4K062, mscSKU: , zoro_no: G1986000, mongo_id: 65bbe6ae3aaddbd5a9047ad7

Web Price

$837.49 / each

Qty

Product Details

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous Air Over

Duty Cycle Continuous

Finish Enamel

Frame 145TZ

Frame Material Steel

Full Load Amps 14.9 A

HP_ 3

Hz_ 60 Hz

Includes 1/4-20 UNC-2B 3/4 in Deep Tapped Hole in Shaft, Gasketed Terminal Access Cover, Shaft Key

Ins. Class B

Item - Farm Duty Motors Aeration Fan Motor

Length Less Shaft 11 1/2 in

Max. Ambient Temp. 50 Degrees C

Max. Ambient Temperature 50 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Aeration Fan

Motor Thermal Protection Auto

Nameplate RPM 3,450

No. of Speeds 1

Nominal Efficiency 79.9 %

Overall Length 13 3/4 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 7/8 in

Shaft Length 2 1/4 in

Standards CSA Certified (258501), UL Recognized (E37403)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
