Home / Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame

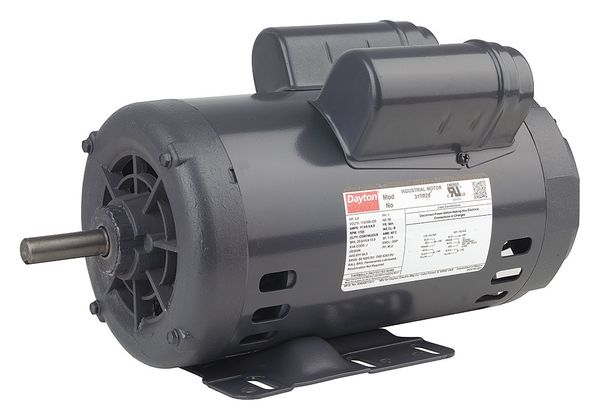

Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame
Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame
Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame
Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame
Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame

Capacitor-Start/Run General Purpose Motor, 3/4 HP, 115/208-230V AC Voltage, 56H Frame

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.7/3.7-3.35 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated No

    graingerSKU: 31TT06, mscSKU: , zoro_no: G9097304, mongo_id: 65bbe9ec22d7a989a9987716

Web Price
$1,204.99 / each
Qty

Product Details

Yes
Mexico
Continuous
Continuous
56H
Rolled steel
6.7/3.7-3.35 A
Energy Aware
Product Contributes To Reducing Energy Consumption
3/4
60 Hz
Start/Run Capacitors(97 MFD, 250V Start Capacitor & 35 MFD, 370V Run Capacitor)
B
No
11 11/16 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,140
1
80.2 %
13 11/16 in
1
Single
1101-1200
1,101-1,200
5/8 in
1 7/8 in
UL (E47479)
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
