Home / DC Gearmotor, 120.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage

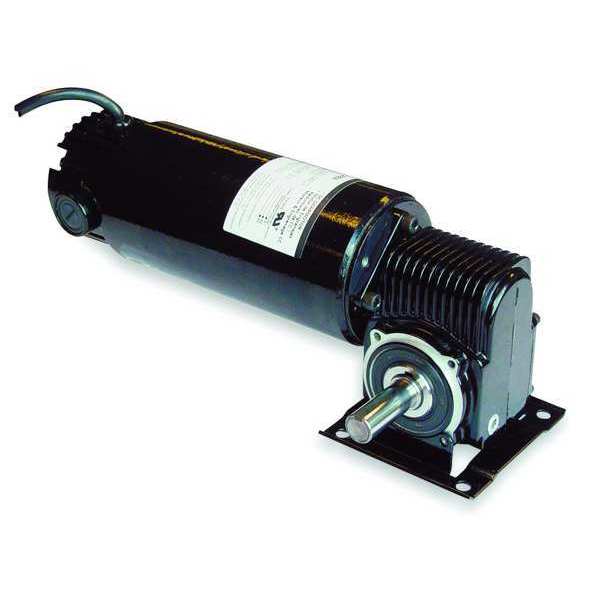

DC Gearmotor, 120.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 120.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 120.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage

DC Gearmotor, 120.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage

  • Dayton
  • DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 60 RPM, Maximum Torque 120 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 30:1, Input Horsepower 1/4 hp, Output Shaft Diameter 5/8 in, Bearing Type Oversized Ball

    graingerSKU: 3XA86, mscSKU: , zoro_no: G0629727, mongo_id: 65bbe7273aaddbd5a90798c7

Web Price
$761.24 / each
Qty

Product Details

Oversized Ball
Oversized Ball
Externally Replaceable
United States
TENV
Powder Coated Gloss Black
2.33 A
2.33 A
Die Cast Aluminum
Bronze Alloy Output Gear, Hardened Steel Worm
30:1
Worm
Totally Enclosed Nonventilated
All Angle
CW/CCW
Right Angle
Single Right
DC Gearmotor
90V DC
Aluminum
Powder Coated Gloss Black
1/4 hp
1/4
F
3/16 Square x 1
3/16 sq in x 1 in
3/16 sq in x 1 in
Permanent Heavy Fluid Gear Oil
40 Degrees C
120 in-lb
40 Degrees C
120 in-lb
Totally Enclosed Nonventilated
Permanent Magnet DC
All Position
Any Angle
60 RPM
60 RPM
90V DC
5/8 in
1 1/2 in
175 lb
175 ft-lb
1
Yes
Yes
6YHY6
Yes
CW/CCW
51 to 75
Lip Type on Input and Output Shaft
Lip Type on Input and Output Shaft
5/8 in
1 1/2 in
Right Angle
C-UL Recognized, UL Recognized
Yes
None
90VDC
