Home / DC Gearmotor, 23 rpm, 12V, TENV

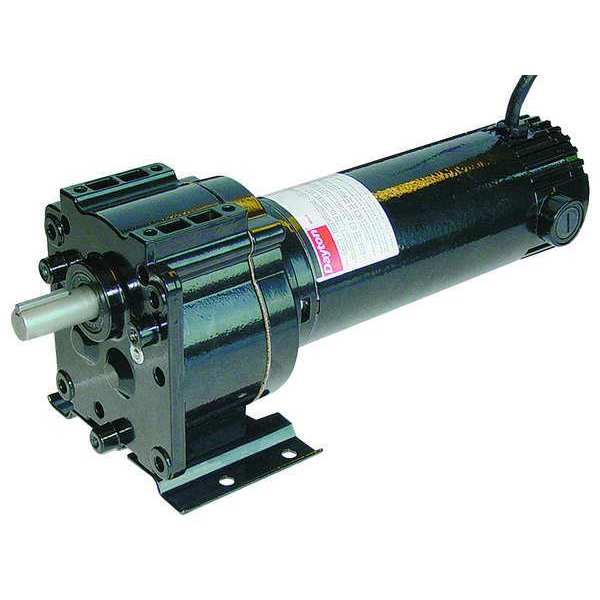

DC Gearmotor, 23 rpm, 12V, TENV
DC Gearmotor, 23 rpm, 12V, TENV
DC Gearmotor, 23 rpm, 12V, TENV

DC Gearmotor, 23 rpm, 12V, TENV

  • Dayton
  • DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Permanent Magnet DC, Nameplate Speed 23 RPM, Maximum Torque 280 in-lb, Overhung Load Capacity 150 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Gear Ratio 37:1, Input Horsepower 1/6 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case

    graingerSKU: 1Z820, mscSKU: , zoro_no: G0380852, mongo_id: 65bbe86522d7a989a98f09e6

Web Price
$508.74 / each
Qty

Product Details

Ball on Motor, Needle Roller and Thrust Balls on Case
Ball on Motor, Needle Roller and Thrust Balls on Case
Externally Replaceable
United States
TENV
9.75 A
9.75 A
Die Cast Aluminum
Hardened Steel
37:1
Totally Enclosed Nonventilated
All Angle
CW/CCW
Parallel
Single
DC Gearmotor
12V DC
Aluminum
1/6 hp
1/6
10.13 in
Permanent Heavy Fluid Gear Oil
40 Degrees C
280 in-lb
40 Degrees C
280 in-lb
Totally Enclosed Nonventilated
Permanent Magnet DC
All Position
Any Angle
23 RPM
23 RPM
12V DC
5/8 in
3.5 in
1 1/2 in
11.63 in
150 lb
150 ft-lb
1
Yes
Yes
6YHY5
No
CW/CCW
16 to 30
Lip Type on Output Shaft
On Input and Output Shaft
5/8
1-1/2
Parallel
C-UL Recognized, UL Recognized
Yes
None
12VDC
