Name: Downblast Vent, Direct Drive, 16-3/4 In
Brand: Dayton
SKU: G2201516
Price: 1192.49 USD
Availability: InStock

Home / Downblast Vent, Direct Drive, 16-3/4 In

Downblast Vent, Direct Drive, 16-3/4 In

SKU
Brand Dayton
Categories
Description Centrifugal Downblast Roof Exhaust Fan, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 16 3/4 in, Base Diameter Not Applicable, Base Length 26 in, Base Width 26 in, Base Shape Square, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/3 hp, Exhaust Airflow @ 0.000 in SP 1,813 cfm, For High-Static Pressure Applications Yes, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof, Maximum Static Pressure 1 in wc
graingerSKU: 4YC72, mscSKU: , zoro_no: G2201516, mongo_id: 65bbe8979a749db82279ef05

Web Price

$1,192.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV83

Adj. 6 3/8H Roof Curb Stock No. 4c454

Agency Compliance AMCA Sound & Air, CSA Certified Motor, UL/cUL 705

Airflow @ 0.000 in SP 1,813 cfm

Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Application Industrial and Commercial Applications

Assembled/Unassembled Assembled

Assembly Assembled

Base Diameter Not Applicable

Base Dimension 26 in Square

Base Height 1 3/4 in

Base Length 26 in

Base Shape Square

Base Size - Roof Ventilators 26 in x 26 in

Base Square Size - Roof Ventilators 26 x 26

Base Width 26 in

Brake Horsepower 3/10 hp

CFM @ 0.000-In. SP 1813

CFM @ 0.125-In. SP 1731

CFM @ 0.250-In. SP 1648

CFM @ 0.375-In. SP 1562

CFM @ 0.500-In. SP 1471

CFM @ 0.625-In. SP 1370

CFM @ 0.750-In. SP 1257

CFM @ 0.875-In. SP 1100

CFM @ 1.000-In. SP 875

Compatible Curb Manufacturer Part Number 2RB77, 2ZV83, 3C437, 4C454, 4HX40, 4HX48

Compatible Speed Control 48C172

Country of Origin (subject to change) United States

Current 4.7 A

Cutout Length 21.5 in

Cutout Size 21.5 in L x 21.5 in W

Damper Size 19 x 19 in

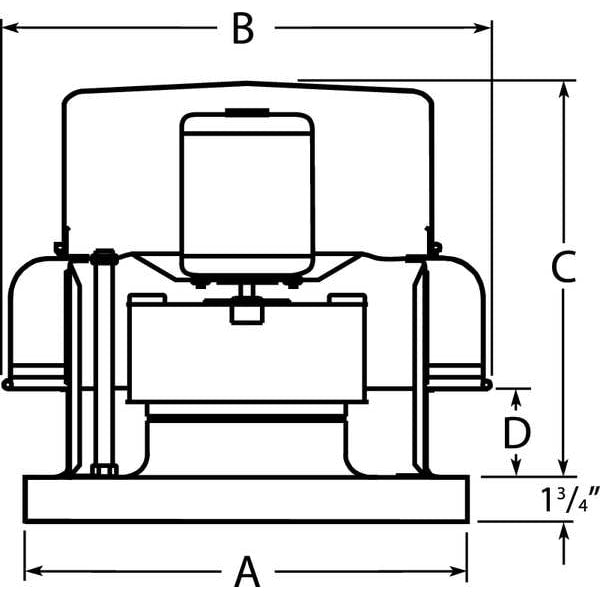

Dimension A 26 in

Dimension B 28 3/8 in

Dimension C 23 3/4 in

Dimension D 4 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Direct Drive

Drive Type - Roof Ventilators Direct Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 1,813 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 1,731 cfm

Exhaust Airflow @ 0.250 in SP 1,648 cfm

Exhaust Airflow @ 0.375 in SP 1,562 cfm

Exhaust Airflow @ 0.500 in SP 1,471 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Features a Fully Rolled Windband Bead for Increased Stability and Easy Transport, Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, Nema 1 Junction Box Located in Motor Enclosure, Nonoverloading Centrifugal Wheel Design, Optional Nema 1 and 4 Disconnects Available

For Air Type Clean Air

For High-Static Pressure Applications Yes

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 28.4 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.4 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Downblast Ventilator

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.29

Max. Inlet Temp. 130 Degrees

Max. Operating Amps 4.7

Maximum Ambient Temperature 130 Degrees F

Maximum Fan Speed 1,140 RPM

Maximum Inlet Air Temperature 130 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard-Efficiency Motors

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/3 hp

Motor HP 1/3

Motor HP - Roof Ventilators 1/3 hp

Motor Location Out of Airstream

Motor Speed 1,100 RPM

Motor Voltage 115

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Mounting Orientation Vertical

Nameplate Voltage 115V AC

Nominal Voltage 115V AC

Number of Speeds 1

Overall Dia. 28 3/8 in

Overall Diameter 28 3/8 in

Overall Height 25 1/2 in

Overall Length 28 3/8 in

Overall Width 28 3/8 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 1/2 in

Recommended 12 In. Fixed Curb Item No. 2RB77

Recommended 8 In. Fixed Curb Item No. 4HX40

RPM 1140

Safety Features Birdscreen, Windband

Shaft Dia. Wheel End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 10.8

Sones @ 0.250-In. SP @ 5 Ft. 10.4

Sound Level 10.4 sones @ 0.250 in SP and 5 ft, 10.8 sones @ 0.125 in SP and 5 ft, 11.2 sones @ 0.000 in SP and 5 ft, 9.5 sones @ 0.625 in SP and 5 ft, 9.5 sones @ 0.750 in SP and 5 ft, 9.5 sones @ 0.875 in SP and 5 ft, 9.6 sones @ 0.500 in SP and 5 ft, 9.7 sones @ 1.000 in SP and 5 ft, 9.9 sones @ 0.375 in SP and 5 ft

Spark Resistant Construction Type A

Speed Control 48C172

Speed Controllable Variable Speed

Standards AMCA Sound and Air, CSA, UL/cUL 705

Voltage - Roof Ventilators 115V AC

Wheel Dia. 16 3/4 in

Wheel Diameter 16 3/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
