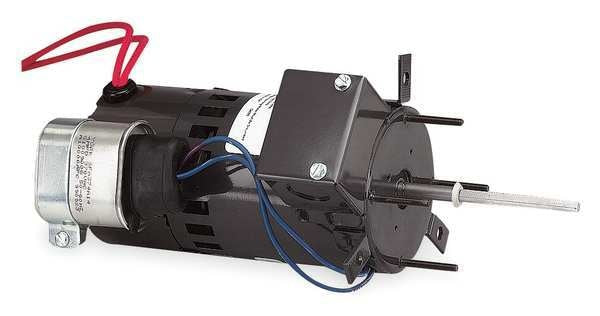

Drft Bstr Mtr, PSC, OAO, 1/9hp, 3000rpm, 230V

SKU
Brand Dayton
Categories
Description Draft Booster Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/9 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 230V AC, 0.60 Full Load Amps, Non-Standard Frame, 60/50 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug, Motor Mounting Position All Angle, Shaft Length 3 3/4 in
graingerSKU: 1D089, mscSKU: , zoro_no: G0267775, mongo_id: 65bbe80e22d7a989a98d3f9c

Web Price

$247.49 / each

Qty

Product Details

Body Dia. 3 5/16 in

Capacitor Required Yes

Contact Break 800 RPM

Contact Make 1,800 RPM

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Footnotes Extended Studs

Frame Non-Standard

Full Load Amps 0.60

Full Load Amps @ 50Hz 0.60

HP @ 50Hz 1/9

HP_ 1/9

Hz_ 60/50

Includes Centrifugal Safety Switch, 5/16 Diameter Shaft Bushing

Ins. Class B

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Service Factor 1

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

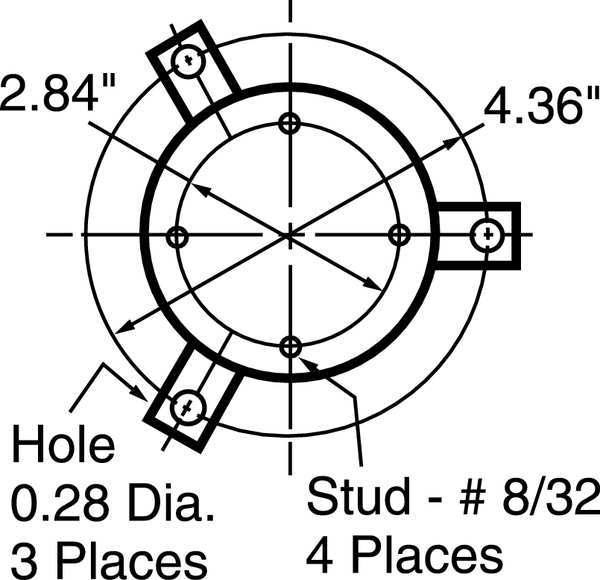

Mounting Pattern C

Nameplate RPM 3,000

No. of Speeds 1

Package Quantity 1

Phase Single

RPM @ 50Hz 3,000

RPM Range 1,801-3,000

Service Factor @ 50Hz 1

Shaft Dia. 1/4 in

Shaft Length 3 3/4 in

Standards UL Recognized and CSA Certified

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage @ 50Hz 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
