Home / Exh Vent w/ Drive Pkg, 208-230/460 V

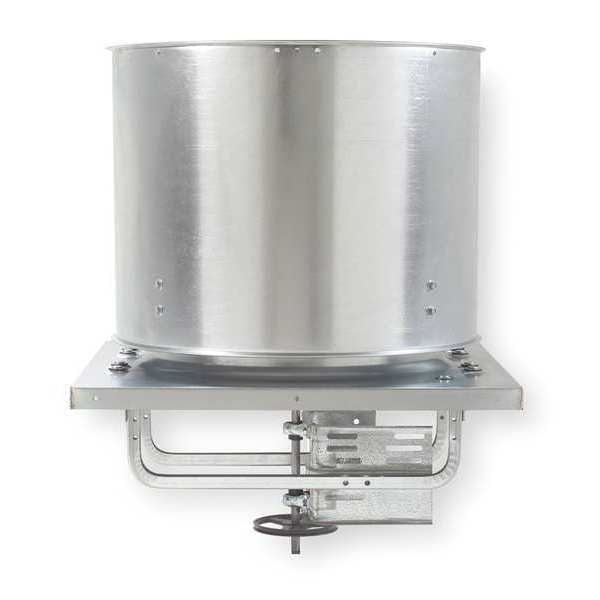

Exh Vent w/ Drive Pkg, 208-230/460 V

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 66 1/2 in, Base Width 66 1/2 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 7 1/2 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Open Dripproof, Blade Diameter 54 in, For Air Type Clean Air, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 120 Degrees F
graingerSKU: 7HZ42, mscSKU: , zoro_no: G3654077, mongo_id: 65bbe7c49a749db822757146

Web Price

$7,169.99 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV87

Agency Compliance AMCA Sound & Air, UL/cUL 705

Airflow @ 0.000 in SP 50,958 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 66 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 66 1/2 in

Base Length (In.) 66-1/2

Base Shape Square

Base Size - Roof Ventilators 66 1/2 in x 66 1/2 in

Base Square Size - Roof Ventilators 66-1/2 x 66-1/2

Base Width 66 1/2 in

Base Width (In.) 66-1/2

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 54 in

Blade Diameter 54 in

Blade Material Steel

Brake Horsepower 8 49/50 hp

CFM @ 0.000-In. SP 50,958

CFM @ 0.125-In. SP 48,034

CFM @ 0.250-In. SP 44,312

CFM @ 0.375-In. SP 40,154

CFM @ 0.500-In. SP 28,469

Compatible Curb Manufacturer Part Number 2ZV87, 3AZJ8

Country of Origin (subject to change) Multiple

Current 20.5-18.5/9.2 A

Dimension A 66 1/2 in

Dimension A (In.) 66-1/2

Dimension B 61 1/4 in

Dimension B (In.) 61-1/4

Dimension C 26 1/2 in

Dimension C (In.) 26-1/2

Dimension D 45 in

Dimension D (In.) 45

Dimension E 62 5/8 in

Dimension E (In.) 62-5/8

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Exhaust Airflow @ 0.000 in SP 50,958 cfm

Exhaust Airflow @ 0.000 in SP - Range More than 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 50,958 cfm

Exhaust Airflow @ 0.125 in SP 48,034 cfm

Exhaust Airflow @ 0.250 in SP 44,312 cfm

Exhaust Airflow @ 0.375 in SP 40,154 cfm

Exhaust Airflow @ 0.500 in SP 28,469 cfm

Fan RPM 552

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Lifting Lugs are Provided, The Windband is Removable for Easy Inspection

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 62.6 in

Housing Material Steel

Housing Width 62.6 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 8.98 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Max. Operating Amps 21.1-19.1/9.5

Maximum Fan Speed 552 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1/2 in wc

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 7 1/2 hp

Motor HP 7.5 hp

Motor Hz 60

Motor Voltage 208/230/460

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 208-230/460V AC

Nameplate Voltage - Phase 208-230/460V AC - 3 Phase

Nominal Voltage 208-230/460V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 66 1/2 in

Overall Dia. (In.) 66.5 in

Overall Diameter 62 5/8 in

Overall Height 45 in

Overall Height (In.) 45 in

Overall Width 66 1/2 in

Package Quantity 1

Phase 3

Propeller Material Steel

Propeller Shaft Diameter 1 1/2 in

Recommended 12 In. Fixed Curb Item No. 3AZJ8

Requires Roof Curb for New Installations

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1.5 in

Shaft Dia. Sheave End (In.) 1.5 in

Sones @ 0.125-In. SP @ 5 Ft. 39 sones

Sones @ 0.250-In. SP @ 5 Ft. 38 sones

Sound Level 37.0 sones @ 0.375 in SP and 5 ft, 38.0 sones @ 0.250 in SP and 5 ft, 39.0 sones @ 0.000 in SP and 5 ft, 39.0 sones @ 0.125 in SP and 5 ft, 47.0 sones @ 0.500 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Standard 301, UL/cUL 705

Stock No. 4YY28

Type Axial Upblast

Voltage - Roof Ventilators 208V AC/230V AC/460V AC
