Exhaust Vent, 14 In, RPM: 1750

SKU
Brand Dayton
Categories
Description Axial Downblast Roof Exhaust Fan, Mounting Location Roof, Assembly Fully Assembled, Blade Diameter 14 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 2,457 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 1 in wc, Motor Enclosure Open Dripproof, Motor Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4, Supply Airflow @ 0.000 in SP 2,457 cfm
graingerSKU: 4YC90, mscSKU: , zoro_no: G3300324, mongo_id: 65bbea6522d7a989a99aee37

Web Price

$1,327.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4c453

Airflow @ 0.000 in SP 2,457 cfm

Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 22 in Square

Base Height 1 3/4 in

Base Length 22 in

Base Shape Square

Base Top to Shroud 6 1/4 in

Base Width 22 in

Blade Design Swept Steeply Pitched

Blade Diameter 14 in

Blade Material Aluminum

Brake Horsepower 41/100 hp

CFM @ 0.000-In. SP 2457

CFM @ 0.125-In. SP 2298

CFM @ 0.250-In. SP 2093

CFM @ 0.375-In. SP 1875

CFM @ 0.500-In. SP 1603

CFM @ 0.625-In. SP 1381

CFM @ 0.750-In. SP 1244

CFM @ 0.875-In. SP 984

CFM @ 1.000-In. SP 716

Compatible Curb Manufacturer Part Number 2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47

Compatible Speed Control 48C173

Country of Origin (subject to change) United States

Current 6.0/3.0 A

Cutout Length 17.5 in

Cutout Size 17.5 in L x 17.5 in W

Damper Size 15 x 15 in

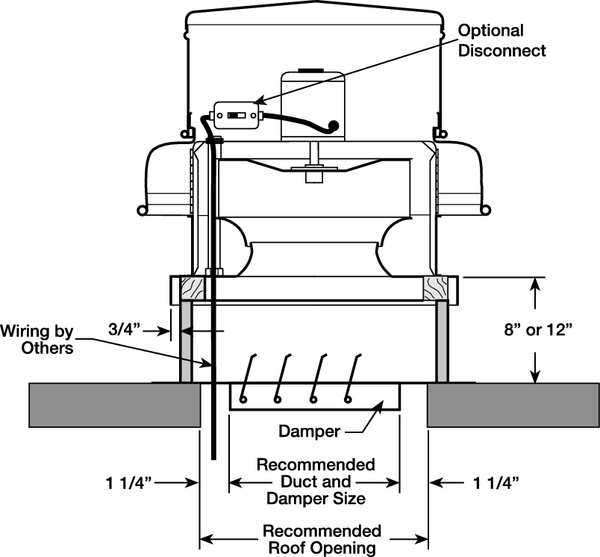

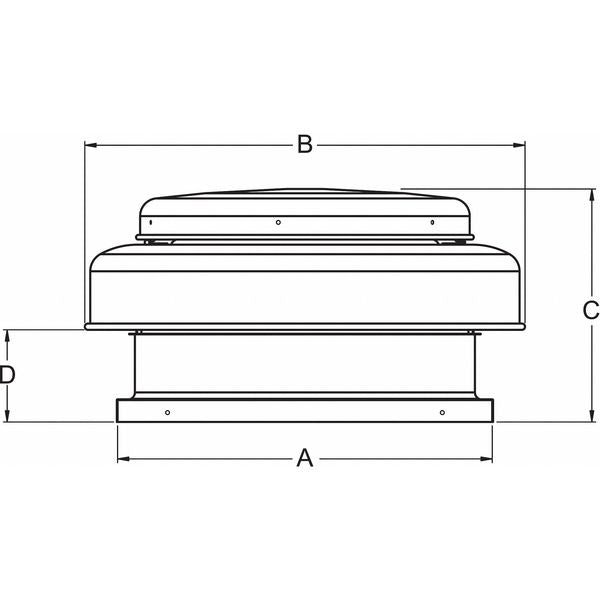

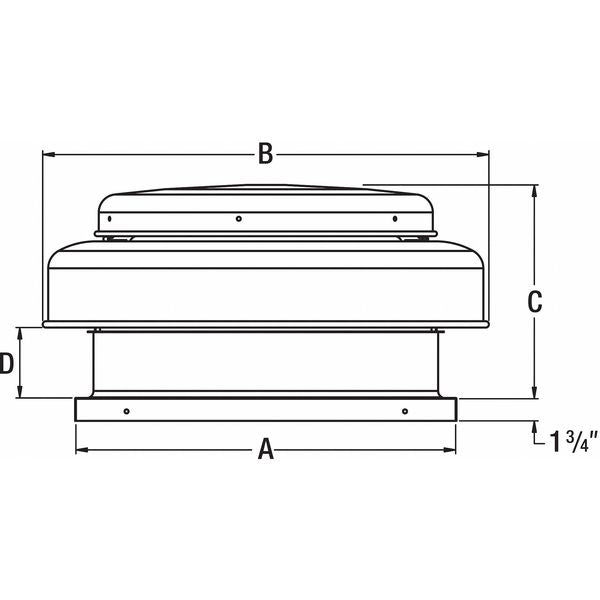

Dimension A 22 in

Dimension B 28 5/8 in

Dimension C 16 1/2 in

Dimension D 6 1/4 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,457 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 2,298 cfm

Exhaust Airflow @ 0.250 in SP 2,093 cfm

Exhaust Airflow @ 0.375 in SP 1,875 cfm

Exhaust Airflow @ 0.500 in SP 1,603 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 28.6 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.6 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.41 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 4.4

Max. Operating Watts 380 W

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard-Efficiency Motors

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 28 5/8 in

Overall Diameter 28.6 in

Overall Height 18 1/4 in

Overall Length 28 5/8 in

Overall Width 28 5/8 in

Package Quantity 1

Phase 1

Power Consumption 380 W

Promotion Restriction Not eligible for promotion

Propeller Dia. 14 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

Recommended 12 In. Fixed Curb Item No. 2RB76

Recommended 8 In. Fixed Curb Item No. 4HX39

Recommended Damper Size 15 in x 15 in

Recommended Damper Stock No. 4HX65

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 16.3

Sones @ 0.250-In. SP @ 5 Ft. 16.2

Sound Level 16.1 sones @ 0.375 in SP and 5 ft, 16.2 sones @ 0.250 in SP and 5 ft, 16.3 sones @ 0.125 in SP and 5 ft, 16.8 sones @ 0.000 in SP and 5 ft, 18.4 sones @ 0.750 in SP and 5 ft, 19.2 sones @ 0.500 in SP and 5 ft, 19.3 sones @ 0.875 in SP and 5 ft, 19.5 sones @ 0.625 in SP and 5 ft, 22.0 sones @ 1.000 in SP and 5 ft

Speed Control 48C173

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 2,457 cfm

Voltage 115/230
