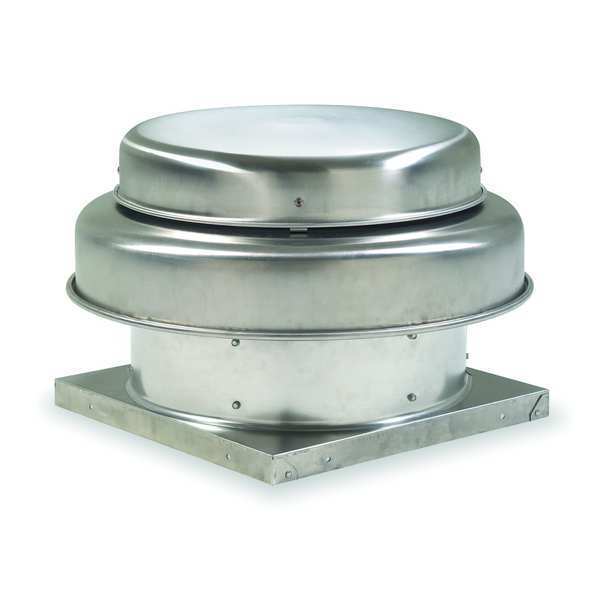

Exhaust Vent, 16 In

SKU
Brand Dayton
Categories
Description Axial Downblast Roof Exhaust Fan, Mounting Location Roof, Assembly Fully Assembled, Blade Diameter 16 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 3,068 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 1 1/4 in wc, Motor Enclosure Open Dripproof, Motor Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4, Supply Airflow @ 0.000 in SP 3,068 cfm
graingerSKU: 4YC49, mscSKU: , zoro_no: G1077097, mongo_id: 65bbe7563aaddbd5a908ba9a

Web Price

$1,517.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV83

Adj. 6 3/8H Roof Curb Stock No. 4c454

Airflow @ 0.000 in SP 3,068 cfm

Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 26 in Square

Base Height 1 3/4 in

Base Length 26 in

Base Shape Square

Base Top to Shroud 6 1/4 in

Base Width 26 in

Blade Design Swept Steeply Pitched

Blade Diameter 16 in

Blade Material Aluminum

Brake Horsepower 12/25 hp

CFM @ 0.000-In. SP 3068

CFM @ 0.125-In. SP 2928

CFM @ 0.250-In. SP 2771

CFM @ 0.375-In. SP 2590

CFM @ 0.500-In. SP 2339

CFM @ 0.625-In. SP 2112

CFM @ 0.750-In. SP 1686

CFM @ 0.875-In. SP 1398

CFM @ 1.000-In. SP 1257

CFM @ 1.250-In. SP 934

Compatible Curb Manufacturer Part Number 2RB77, 2ZV83, 3C437, 4C454, 4HX40, 4HX48

Compatible Speed Control 48C172

Country of Origin (subject to change) United States

Current 6.0/3.0 A

Cutout Length 21.5 in

Cutout Size 21.5 in L x 21.5 in W

Damper Size 19 x 19 in

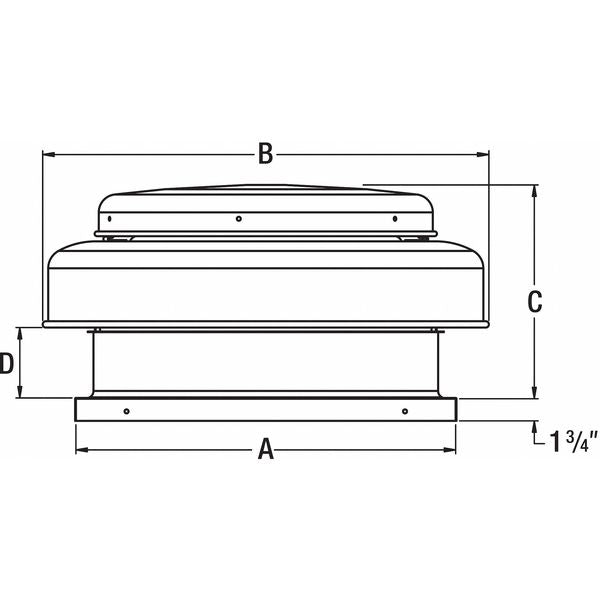

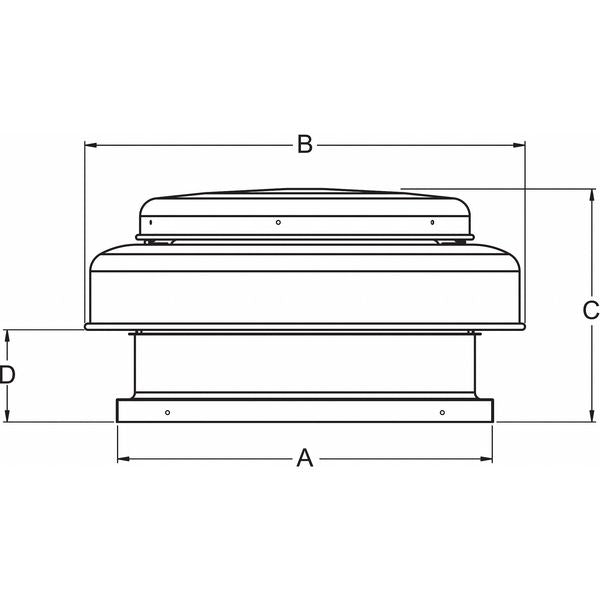

Dimension A 26 in

Dimension B 35 1/4 in

Dimension C 17 1/4 in

Dimension D 6 1/4 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 3,068 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 2,928 cfm

Exhaust Airflow @ 0.250 in SP 2,771 cfm

Exhaust Airflow @ 0.375 in SP 2,590 cfm

Exhaust Airflow @ 0.500 in SP 2,339 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 35.3 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 35.3 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.48 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 5.0

Max. Operating Watts 480 W

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1 1/4 in wc

Motor Efficiency Standard-Efficiency Motors

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 35 1/4 in

Overall Diameter 35.3 in

Overall Height 19 in

Overall Length 35 1/4 in

Overall Width 35 1/4 in

Package Quantity 1

Phase 1

Power Consumption 480 W

Propeller Dia. 16 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

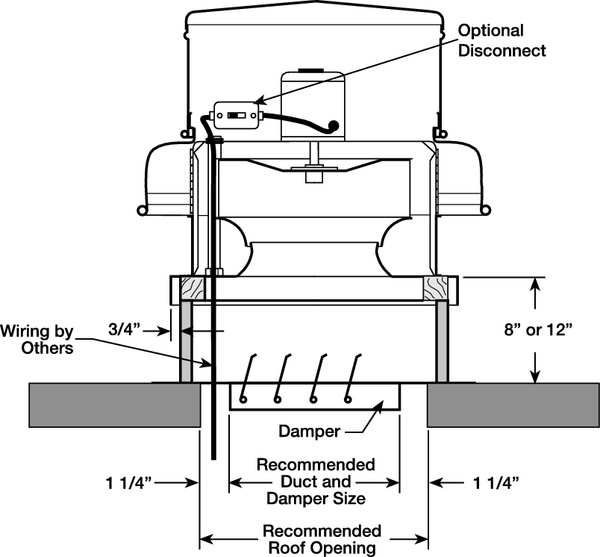

Recommended 12 In. Fixed Curb Item No. 2RB77

Recommended 8 In. Fixed Curb Item No. 4HX40

Recommended Damper Size 19 in x 19 in

Recommended Damper Stock No. 4HX66

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 17.1

Sones @ 0.250-In. SP @ 5 Ft. 16.1

Sound Level 15.2 sones @ 0.625 in SP and 5 ft, 15.5 sones @ 0.500 in SP and 5 ft, 15.7 sones @ 0.375 in SP and 5 ft, 16.1 sones @ 0.250 in SP and 5 ft, 17.1 sones @ 0.125 in SP and 5 ft, 17.1 sones @ 1.250 in SP and 5 ft, 17.9 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 1.000 in SP and 5 ft, 24.0 sones @ 0.875 in SP and 5 ft, 25.0 sones @ 0.750 in SP and 5 ft

Speed Control 48C172

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 3,068 cfm

Voltage 115
