Exhaust Vent, 30 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 38 3/4 in, Base Width 38 3/4 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 2 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Open Dripproof, Blade Diameter 30 in, For Air Type Clean Air, Maximum Static Pressure 3/8 in wc, Maximum Inlet Air Temperature 120 Degrees F
graingerSKU: 7A874, mscSKU: , zoro_no: G0552937, mongo_id: 65bbe8979a749db82279ef04

Web Price

$2,834.99 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV84

Adj. 6 3/8H Roof Curb Stock No. 4c455

Agency Compliance UL/cUL 705 Listed

Airflow @ 0.000 in SP 15,408 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 38 3/4 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 38 3/4 in

Base Length (In.) 38-3/4

Base Shape Square

Base Size - Roof Ventilators 38 3/4 in x 38 3/4 in

Base Square Size - Roof Ventilators 38-3/4 x 38-3/4

Base Width 38 3/4 in

Base Width (In.) 38-3/4

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 30 in

Blade Diameter 30 in

Blade Material Steel

Brake Horsepower 2 41/100 hp

CFM @ 0.000-In. SP 15,408

CFM @ 0.125-In. SP 14,272

CFM @ 0.250-In. SP 13,148

CFM @ 0.375-In. SP 12,089

CFM Range 7256 to 15,407

Compatible Curb Manufacturer Part Number 2ZV84, 3AZJ1, 4C455

Country of Origin (subject to change) Multiple

Current 6.0-5.7/2.8 A

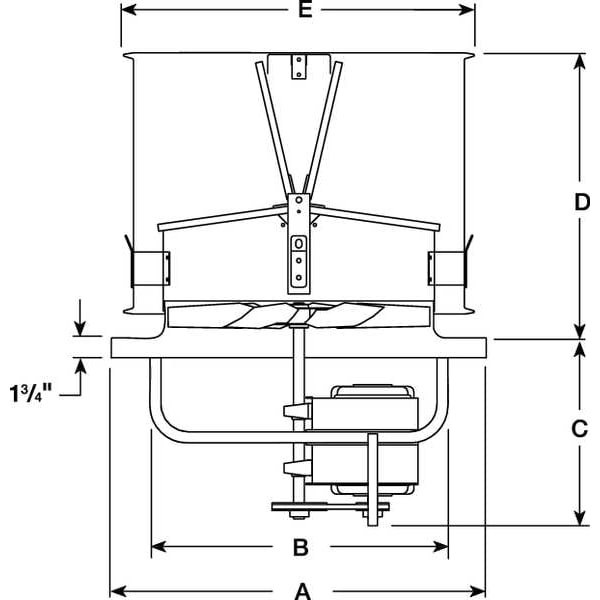

Dimension A 38 3/4 in

Dimension A (In.) 38-3/4

Dimension B 32 1/2 in

Dimension B (In.) 32-1/2

Dimension C 18 1/8 in

Dimension C (In.) 18-1/8

Dimension D 30 in

Dimension D (In.) 30

Dimension E 37 3/8 in

Dimension E (In.) 37 3/8

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 15,408 cfm

Exhaust Airflow @ 0.000 in SP - Range 10,000 to 19,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 15,408 cfm

Exhaust Airflow @ 0.125 in SP 14,272 cfm

Exhaust Airflow @ 0.250 in SP 13,148 cfm

Exhaust Airflow @ 0.375 in SP 12,089 cfm

Fan RPM 964

Features Lifting Lugs are Provided

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 37.3 in

Housing Material Steel

Housing Width 37.3 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 2.41 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Fan Speed 964 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/8 in wc

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 2 hp

Motor HP 2 hp

Motor HP Range 1/3 to 2

Motor Hz 60

Motor Speed 964 RPM

Motor Voltage 208/220/440

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 208-230/460V AC

Nameplate Voltage - Phase 208-230/460V AC - 3 Phase

Nominal Voltage 208-230/460V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 38 3/4 in

Overall Dia. (In.) 40 in

Overall Diameter 37 3/8 in

Overall Height 30 in

Overall Height (In.) 30 in

Overall Width 38 3/4 in

Package Quantity 1

Phase 3

Propeller Material Steel

Propeller Shaft Diameter 1 in

Recommended 12 In. Fixed Curb Item No. 3AZJ1

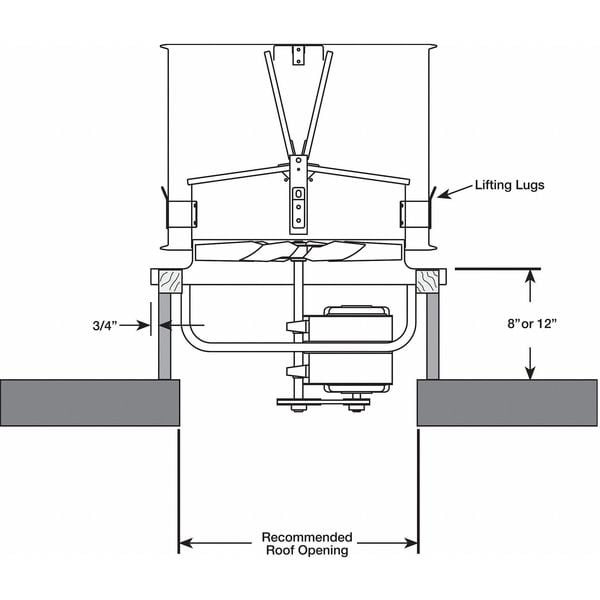

Requires Roof Curb for New Installations

Resistance Properties Weather Resistant

RPM Range 454 to 964

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1 in

Shaft Dia. Sheave End (In.) 1 in

Sones @ 0.125-In. SP @ 5 Ft. 30 sones

Sones @ 0.250-In. SP @ 5 Ft. 30 sones

Sound Level 29.0 sones @ 0.375 in SP and 5 ft, 30.0 sones @ 0.000 in SP and 5 ft, 30.0 sones @ 0.125 in SP and 5 ft, 30.0 sones @ 0.250 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Stock No. 4YY24

Type Axial Upblast

Voltage - Roof Ventilators 208V AC/220V AC/440V AC
