Name: Exhaust Vent, 36 In
Brand: Dayton
SKU: G0776912
Price: 2517.49 USD
Availability: InStock

Home / Exhaust Vent, 36 In

Exhaust Vent, 36 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Assembly Unassembled, Drive Type Belt Drive, Blade Diameter 36 in, Base Diameter Not Applicable, Base Length 44 3/4 in, Base Width 44 3/4 in, Base Shape Square, Maximum Airflow 19,212 cfm, Minimum Airflow 11,600 cfm, Maximum Motor Horsepower 2 hp, Minimum Motor Horsepower 3/4 hp, Maximum Motor Speed 689 RPM, Minimum Motor Speed 357 RPM, Maximum Static Pressure 3/8 in wc, For High-Static Pressure Applications No, For Air Type Clean Air
graingerSKU: 4YY25, mscSKU: , zoro_no: G0776912, mongo_id: 65bbe8479a749db822782229

Web Price

$2,517.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV85

Adj. 6 3/8H Roof Curb Stock No. 3c597

Agency Compliance cUL 705 Listed, UL

Application Industrial and Commercial Buildings

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 44 3/4 in Square

Base Height 1 3/4 in

Base Height (In.) 1 3/4 in

Base Length 44 3/4 in

Base Length (In.) 44-3/4

Base Shape Square

Base Size - Roof Ventilators 44 3/4 in x 44 3/4 in

Base Width 44 3/4 in

Base Width (In.) 44-3/4

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 36 in

Blade Diameter 36 in

Blade Material Steel

Brake Horsepower 9/10 hp

Compatible Curb Manufacturer Part Number 2ZV85, 3AZJ3, 3C597

Country of Origin (subject to change) United States

Damper Size 43.5 x 43.5 in

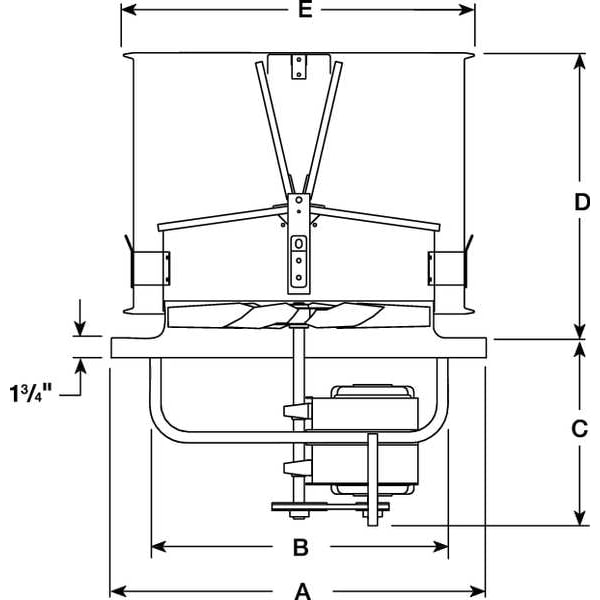

Dimension A 44 3/4 in

Dimension A (In.) 44-3/4

Dimension B 38 1/2 in

Dimension B (In.) 38-1/2

Dimension C 17 1/2 in

Dimension C (In.) 17-1/2

Dimension D 33 in

Dimension D (In.) 33

Dimension E 43 1/2 in

Dimension E (In.) 43-1/2

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Features Lifting Lugs Provided, Removable Windband for Easy Inspection

For Air Type Clean Air

For Airflow (Dependent on Motor) 11,600 cfm to 19,212 cfm

For High-Static Pressure Applications No

Housing Finish Galvanized

Housing Length 43.5 in

Housing Material Steel

Housing Width 43.5 in

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Airflow 19,212 cfm

Maximum Ambient Temperature 120 Degrees F

Maximum Fan Speed 689 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Motor Horsepower 2 hp

Maximum Motor Speed 689 RPM

Maximum Noise Level @ 5 Feet 29 sones

Maximum Static Pressure 3/8 in wc

Minimum Airflow 11,600 cfm

Minimum Motor Horsepower 3/4 hp

Minimum Motor Speed 357 RPM

Motor HP Range 1/2 to 2

Mount Type Roof Curb

Mounting Location Roof

Noise Level @ 0.000 in SP @ 5 ft 17.3 sones

Number of Blades 5

Overall Depth 44 3/4 in

Overall Dia. (In.) 46 in

Overall Diameter 46 in

Overall Height 33 in

Overall Height (In.) 33 in

Overall Width 44 3/4 in

Package Quantity 1

Power Source Electric Motor

Propeller Material Steel

Propeller Shaft Diameter 1 in

Recommended 12 In. Fixed Curb Item No. 3AZJ3

Requires Roof curb for new installations

Resistance Properties Weather Resistant

RPM Range 357 to 689

Shaft Dia. Propeller End (In.) 1 in

Shaft Dia. Sheave End (In.) 1 in

Sound Level Fan RPM 497: 17.3 Sones @ 0.000 in SP and 5 ft, 16.2 sones @ 0.125 in SP and 5 ft, Fan RPM 547: 20.0 Sones @ 0.000 in SP and 5 ft, 19.2 sones @ 0.125 in SP and 5 ft, Fan RPM 626: 25.0 24.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, Fan RPM 689: 29.0 Sones @ 0.000 in SP and 5 ft, 29.0 sones @ 0.125 in SP and 5 ft, 27.0 sones @ 0.250 in SP and 5 ft, 26.0 sones @ 0.375 in SP and 5 ft

Speed Controllable No

Standards AMCA, UL/cUL 705

Type Axial Upblast
