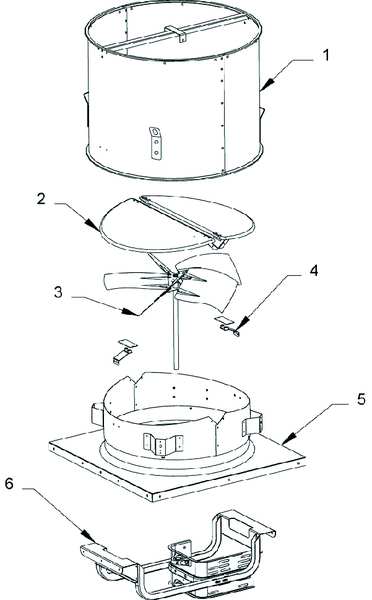

Exhaust Vent, 48 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 50 1/2 in, Base Width 50 1/2 in, Base Shape Square, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 2 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 48 in, For Air Type Clean Air, Maximum Static Pressure 3/8 in wc, Maximum Inlet Air Temperature 120 Degrees F
graingerSKU: 7A869, mscSKU: , zoro_no: G1130516, mongo_id: 65bbe5923aaddbd5a9fd1373

Web Price

$5,241.24 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV86

Adj. 6 3/8H Roof Curb Stock No. 3C216

Agency Compliance UL/cUL 705 Listed

Airflow @ 0.000 in SP 28,075 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 50 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 50 1/2 in

Base Length (In.) 50-1/2

Base Shape Square

Base Size - Roof Ventilators 50 1/2 in x 50 1/2 in

Base Square Size - Roof Ventilators 50-1/2 x 50-1/2

Base Width 50 1/2 in

Base Width (In.) 50-1/2

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 48 in

Blade Diameter 48 in

Blade Material Steel

Brake Horsepower 2 2/5 hp

CFM @ 0.000-In. SP 28,075

CFM @ 0.125-In. SP 25,312

CFM @ 0.250-In. SP 21,501

CFM @ 0.375-In. SP 14,614

CFM Range 16,691 to 37,987

Compatible Curb Manufacturer Part Number 2ZV86, 3AZJ7, 3C216

Country of Origin (subject to change) Multiple

Current 22.4/11.2 A

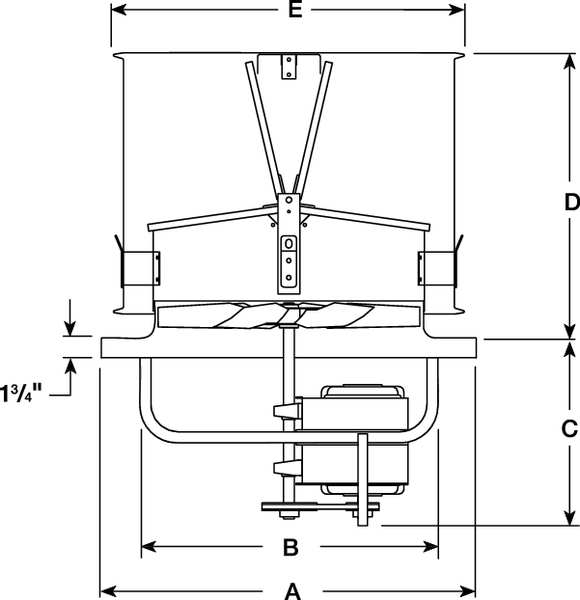

Dimension A 56 3/4 in

Dimension A (In.) 56-3/4

Dimension B 50 1/2 in

Dimension B (In.) 50-1/2

Dimension C 20 1/2 in

Dimension C (In.) 20-1/2

Dimension D 40 in

Dimension D (In.) 40

Dimension E 56 in

Dimension E (In.) 56

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 28,075 cfm

Exhaust Airflow @ 0.000 in SP - Range 20,000 to 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 28,075 cfm

Exhaust Airflow @ 0.125 in SP 25,312 cfm

Exhaust Airflow @ 0.250 in SP 21,501 cfm

Exhaust Airflow @ 0.375 in SP 14,614 cfm

Fan RPM 439

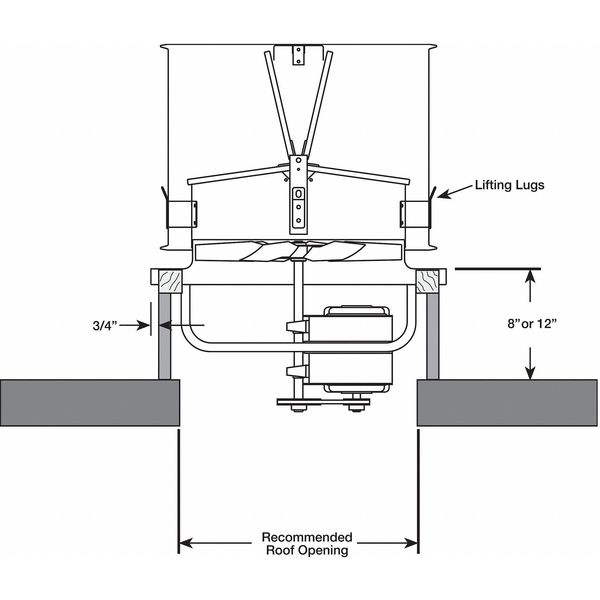

Features Lifting Lugs are Provided

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 56 in

Housing Material Steel

Housing Width 56 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 2.4 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Fan Speed 439 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/8 in wc

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure Design Totally Enclosed Fan-Cooled (TEFC)

Motor Horsepower 2 hp

Motor HP 2 hp

Motor HP Range 3/4 to 5

Motor Hz 60

Motor Speed 594 RPM

Motor Voltage 115/230

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115/230V AC

Nameplate Voltage - Phase 115/230V AC - 1 Phase

Nominal Voltage 115/230V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 56 3/4 in

Overall Dia. (In.) 58 in

Overall Diameter 56 in

Overall Height 40 in

Overall Height (In.) 40 in

Overall Width 56 3/4 in

Package Quantity 1

Phase 1

Propeller Material Steel

Propeller Shaft Diameter 1 1/4 in

Recommended 12 In. Fixed Curb Item No. 3AZJ7

Requires Roof Curb for New Installations

Resistance Properties Weather Resistant

RPM Range 261 to 594

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1.25 in

Shaft Dia. Sheave End (In.) 1.25 in

Sones @ 0.125-In. SP @ 5 Ft. 18.8 sones

Sones @ 0.250-In. SP @ 5 Ft. 18.8 sones

Sound Level 18.8 sones @ 0.125 in SP and 5 ft, 18.8 sones @ 0.250 in SP and 5 ft, 19.3 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.375 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Stock No. 4YY27

Type Axial Upblast

Voltage - Roof Ventilators 115V AC/230V AC
