Home / Exhaust Vent, 48 In

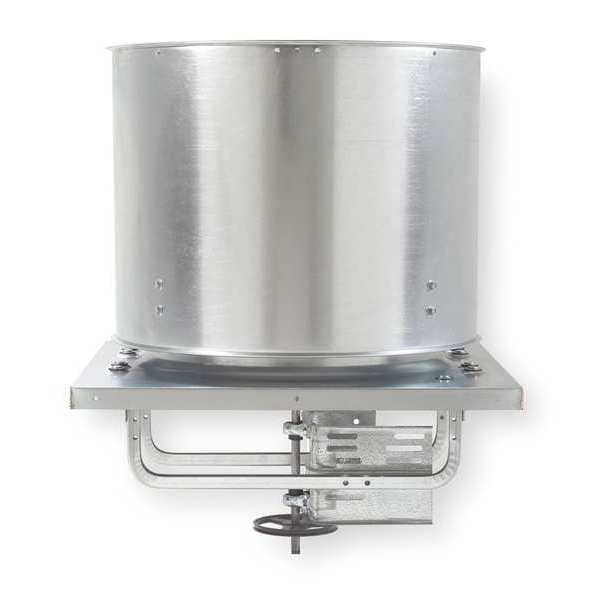

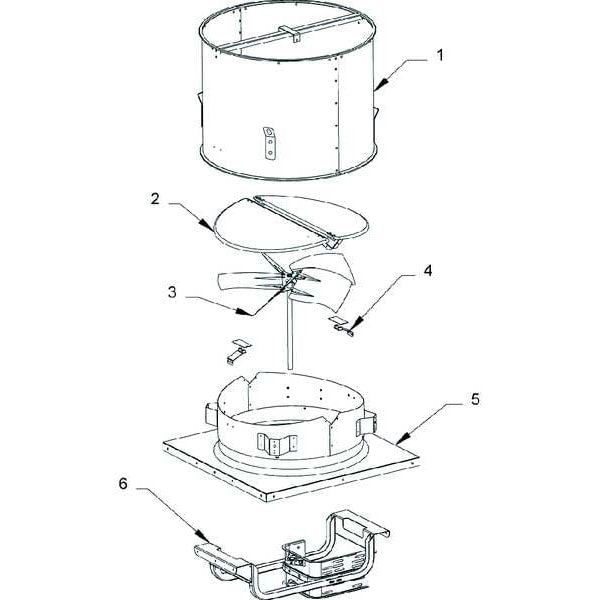

Exhaust Vent, 48 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 56 3/4 in, Base Width 56 3/4 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 3 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 48 in, For Air Type Clean Air, Maximum Static Pressure 1/2 in wc
graingerSKU: 7A885, mscSKU: , zoro_no: G2161135, mongo_id: 65bbe86b22d7a989a98f46b6

Web Price

$4,868.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV86

Adj. 6 3/8H Roof Curb Stock No. 3C216

Agency Compliance UL/cUL 705 Listed

Airflow @ 0.000 in SP 32,104 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 56 3/4 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 56 3/4 in

Base Length (In.) 56-3/4

Base Shape Square

Base Size - Roof Ventilators 56 3/4 in x 56 3/4 in

Base Square Size - Roof Ventilators 56-3/4 x 56-3/4

Base Width 56 3/4 in

Base Width (In.) 56-3/4

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 48 in

Blade Diameter 48 in

Blade Material Steel

Brake Horsepower 3 61/100 hp

CFM @ 0.000-In. SP 32,104

CFM @ 0.125-In. SP 29,829

CFM @ 0.250-In. SP 26,528

CFM @ 0.375-In. SP 23,376

CFM @ 0.500-In. SP 16,326

CFM Range 16,691 to 37,987

Compatible Curb Manufacturer Part Number 2ZV86, 3AZJ5, 3C216

Country of Origin (subject to change) Multiple

Current 8.4-7.6/3.8 A

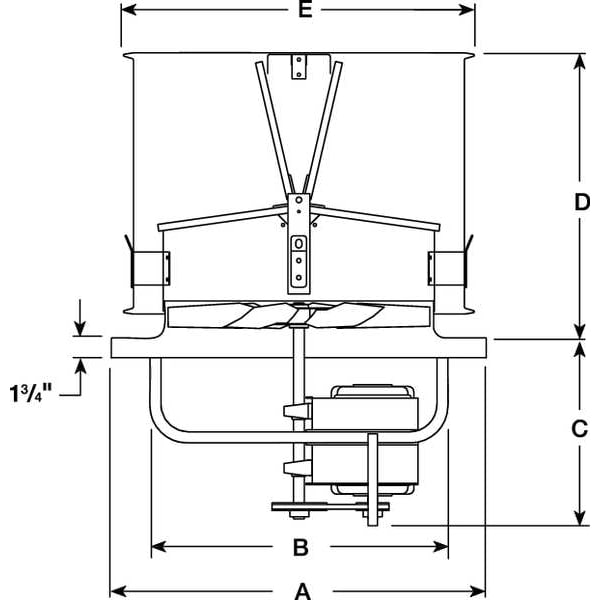

Dimension A 56 3/4 in

Dimension A (In.) 56-3/4

Dimension B 50 1/2 in

Dimension B (In.) 50-1/2

Dimension C 20 1/2 in

Dimension C (In.) 20-1/2

Dimension D 40 in

Dimension D (In.) 40

Dimension E 56 in

Dimension E (In.) 56

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 32,104 cfm

Exhaust Airflow @ 0.000 in SP - Range 20,000 to 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 32,104 cfm

Exhaust Airflow @ 0.125 in SP 29,829 cfm

Exhaust Airflow @ 0.250 in SP 26,528 cfm

Exhaust Airflow @ 0.375 in SP 23,376 cfm

Exhaust Airflow @ 0.500 in SP 16,326 cfm

Fan RPM 502

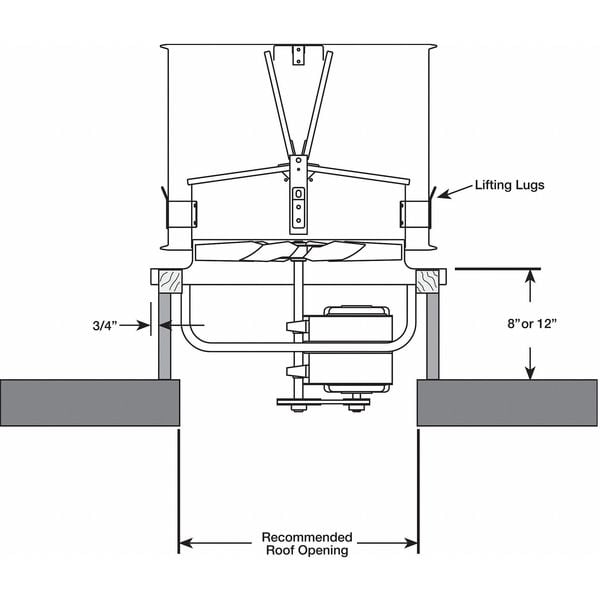

Features Lifting Lugs are Provided

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 56 in

Housing Material Steel

Housing Width 56 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 3.61 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Fan Speed 502 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1/2 in wc

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure Design Totally Enclosed Fan-Cooled (TEFC)

Motor Horsepower 3 hp

Motor HP 3 hp

Motor HP Range 3/4 to 5

Motor Hz 60

Motor Speed 594 RPM

Motor Voltage 208/220/440

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 208-230/460V AC

Nameplate Voltage - Phase 208-230/460V AC - 3 Phase

Nominal Voltage 208-230/460V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 56 3/4 in

Overall Dia. (In.) 58 in

Overall Diameter 56 in

Overall Height 40 in

Overall Height (In.) 40 in

Overall Width 56 3/4 in

Package Quantity 1

Phase 3

Propeller Material Steel

Propeller Shaft Diameter 1 1/4 in

Recommended 12 In. Fixed Curb Item No. 3AZJ7

Requires Roof Curb for New Installations

Resistance Properties Weather Resistant

RPM Range 261 to 594

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1.25 in

Shaft Dia. Sheave End (In.) 1.25 in

Sones @ 0.125-In. SP @ 5 Ft. 24 sones

Sones @ 0.250-In. SP @ 5 Ft. 24 sones

Sound Level 23.0 sones @ 0.250 in SP and 5 ft, 24.0 sones @ 0.000 in SP and 5 ft, 24.0 sones @ 0.125 in SP and 5 ft, 24.0 sones @ 0.375 in SP and 5 ft, 25.0 sones @ 0.500 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Stock No. 7A885

Type Axial Upblast

Voltage - Roof Ventilators 208V AC/220V AC/440V AC
