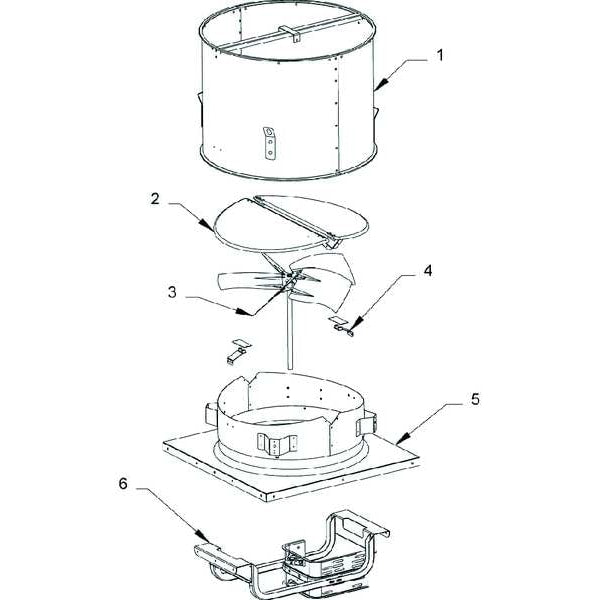

Exhaust Vent, 54 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 66 1/2 in, Base Width 66 1/2 in, Base Shape Square, Nameplate Voltage 230V AC, Phase 1, Motor Horsepower 5 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 54 in, For Air Type Clean Air, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 120 Degrees F
graingerSKU: 7A902, mscSKU: , zoro_no: G3476593, mongo_id: 65bbe89622d7a989a9902aaa

Web Price

$9,361.24 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV87

Agency Compliance UL/cUL 705 Listed

Airflow @ 0.000 in SP 44,589 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 66 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 66 1/2 in

Base Length (In.) 66-1/2

Base Shape Square

Base Size - Roof Ventilators 66 1/2 in x 66 1/2 in

Base Square Size - Roof Ventilators 66-1/2 x 66-1/2

Base Width 66 1/2 in

Base Width (In.) 66-1/2

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 54 in

Blade Diameter 54 in

Blade Material Steel

Brake Horsepower 5 97/100 hp

CFM @ 0.000-In. SP 44,589

CFM @ 0.125-In. SP 41,195

CFM @ 0.250-In. SP 36,770

CFM @ 0.375-In. SP 25,204

CFM @ 0.500-In. SP 20,392

CFM Range 26,207 to 44,670

Compatible Curb Manufacturer Part Number 2ZV87, 3AZJ8

Country of Origin (subject to change) Multiple

Current 20.5 A

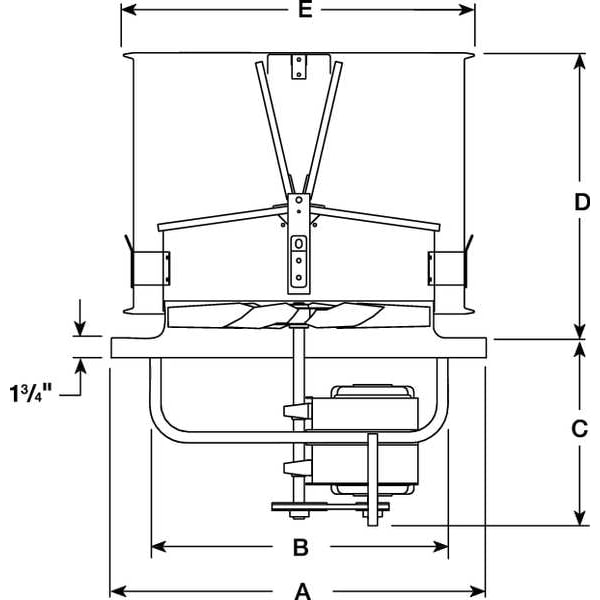

Dimension A 66 1/2 in

Dimension A (In.) 66 1/2

Dimension B 61 1/4 in

Dimension B (In.) 61 1/4

Dimension C 28 in

Dimension C (In.) 28

Dimension D 45 in

Dimension D (In.) 45

Dimension E 62 5/8 in

Dimension E (In.) 62 5/8

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 44,589 cfm

Exhaust Airflow @ 0.000 in SP - Range More than 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 44,589 cfm

Exhaust Airflow @ 0.125 in SP 41,195 cfm

Exhaust Airflow @ 0.250 in SP 36,770 cfm

Exhaust Airflow @ 0.375 in SP 25,204 cfm

Exhaust Airflow @ 0.500 in SP 20,392 cfm

Fan RPM 483

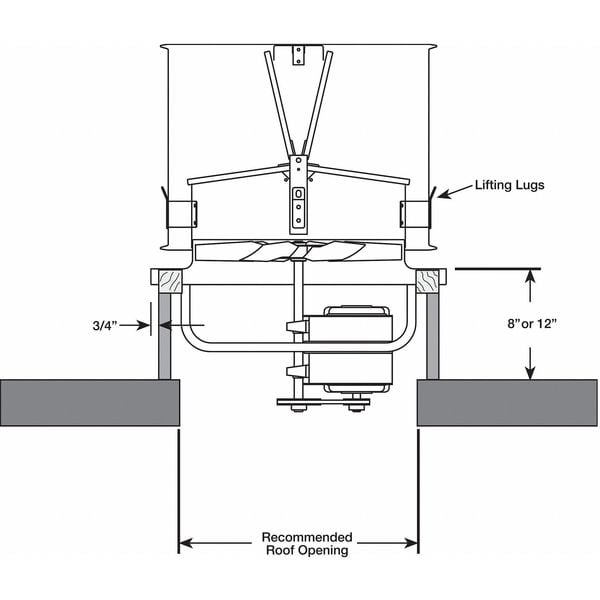

Features Lifting Lugs are Provided

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 62.6 in

Housing Material Steel

Housing Width 62.6 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 5.97 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Fan Speed 483 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1/2 in wc

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure Design Totally Enclosed Fan-Cooled (TEFC)

Motor Horsepower 5 hp

Motor HP 5 hp

Motor HP Range 1 1/2 to 5

Motor Hz 60

Motor Speed 496 RPM

Motor Voltage 230

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 230V AC

Nameplate Voltage - Phase 230V AC - 1 Phase

Nominal Voltage 230V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 66 1/2 in

Overall Dia. (In.) 66.5 in

Overall Diameter 62 5/8 in

Overall Height 45 in

Overall Height (In.) 45 in

Overall Width 66 1/2 in

Package Quantity 1

Phase 1

Propeller Material Steel

Propeller Shaft Diameter 1 1/4 in

Recommended 12 In. Fixed Curb Item No. 3AZJ8

Requires Roof Curb for New Installations

Resistance Properties Weather Resistant

RPM Range 291 to 496

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1.25 in

Shaft Dia. Sheave End (In.) 1.25 in

Sones @ 0.125-In. SP @ 5 Ft. 29 sones

Sones @ 0.250-In. SP @ 5 Ft. 28 sones

Sound Level 29.0 sones @ 0.125 in SP and 5 ft, 29.0 sones @ 0.250 in SP and 5 ft, 30.0 sones @ 0.000 in SP and 5 ft, 31.0 sones @ 0.500 in SP and 5 ft, 32.0 sones @ 0.375 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Stock No. 7A902

Type Axial Upblast
