Name: Exhaust Vent, 60 In
Brand: Dayton
SKU: G3388901
Price: 9629.99 USD
Availability: InStock

Home / Exhaust Vent, 60 In

Exhaust Vent, 60 In

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 72 1/2 in, Base Width 72 1/2 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 10 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 60 in, For Air Type Clean Air, Maximum Static Pressure 3/8 in wc
graingerSKU: 7A914, mscSKU: , zoro_no: G3388901, mongo_id: 65bbe6e93aaddbd5a9060bf2

Web Price

$9,629.99 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV87

Agency Compliance UL/cUL 705 Listed

Airflow @ 0.000 in SP 64,326 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 72 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 72 1/2 in

Base Length (In.) 72-1/2

Base Shape Square

Base Size - Roof Ventilators 72 1/2 in x 72 1/2 in

Base Square Size - Roof Ventilators 72-1/2 x 72-1/2

Base Width 72 1/2 in

Base Width (In.) 72-1/2

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 60 in

Blade Diameter 60 in

Blade Material Steel

Brake Horsepower 12 1/20 hp

CFM @ 0.000-In. SP 64,326

CFM @ 0.125-In. SP 61,083

CFM @ 0.250-In. SP 58,176

CFM @ 0.375-In. SP 50,976

CFM Range 35,353 to 64,325

Compatible Curb Manufacturer Part Number 2ZV87, 3AZJ9

Country of Origin (subject to change) Multiple

Current 27.0-24.4/12.2 A

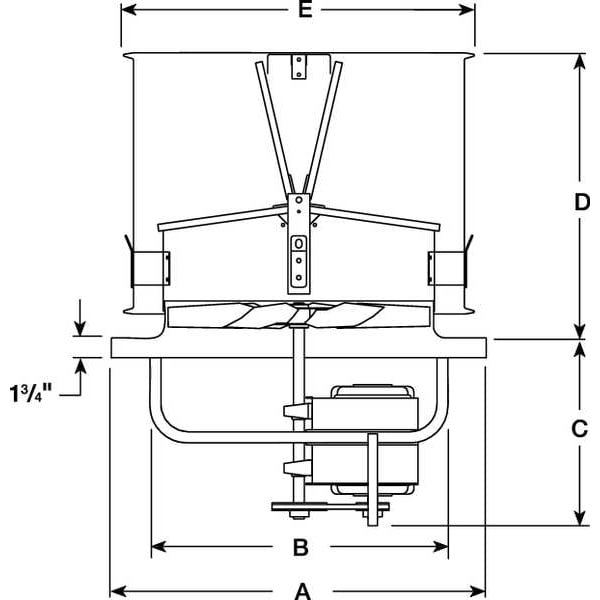

Dimension A 72 1/2 in

Dimension A (In.) 72 1/2

Dimension B 66 1/4 in

Dimension B (In.) 66 1/4

Dimension C 26 5/8 in

Dimension C (In.) 26-5/8

Dimension D 48 in

Dimension D (In.) 48

Dimension E 68 3/4 in

Dimension E (In.) 68 3/4

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 64,326 cfm

Exhaust Airflow @ 0.000 in SP - Range More than 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 64,326 cfm

Exhaust Airflow @ 0.125 in SP 61,083 cfm

Exhaust Airflow @ 0.250 in SP 58,176 cfm

Exhaust Airflow @ 0.375 in SP 50,976 cfm

Fan RPM 504

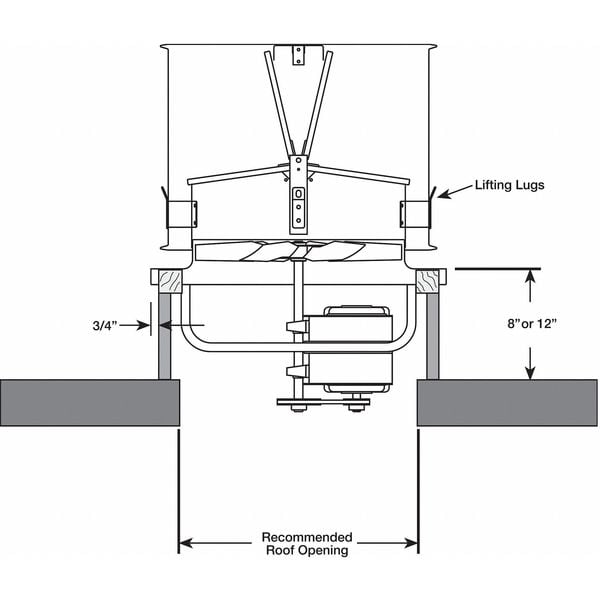

Features Lifting Lugs are Provided

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 68.7 in

Housing Material Steel

Housing Width 68.7 in

Includes Drive Package

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Exhaust Ventilator

Material Steel Blade with Steel Housing

Max. BHP 12.05 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Fan Speed 504 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/8 in wc

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure Design Totally Enclosed Fan-Cooled (TEFC)

Motor Horsepower 10 hp

Motor HP 10 hp

Motor HP Range 3 to 10

Motor Hz 60

Motor Speed 504 RPM

Motor Voltage 208/220/440

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 208-230/460V AC

Nameplate Voltage - Phase 208-230/460V AC - 3 Phase

Nominal Voltage 208-230/460V AC

Number of Blades 5

Number of Speeds 1

Overall Depth 72 1/2 in

Overall Dia. (In.) 72.5 in

Overall Diameter 68 3/4 in

Overall Height 48 in

Overall Height (In.) 48 in

Overall Width 72 1/2 in

Package Quantity 1

Phase 3

Propeller Material Steel

Propeller Shaft Diameter 1 3/4 in

Recommended 12 In. Fixed Curb Item No. 3AZJ9

Requires Roof Curb for New Installations

Resistance Properties Weather Resistant

RPM Range 277 to 504

Safety Features Reinforced Windband

Shaft Dia. Propeller End (In.) 1.75 in

Shaft Dia. Sheave End (In.) 1.75 in

Sones @ 0.125-In. SP @ 5 Ft. 43 sones

Sones @ 0.250-In. SP @ 5 Ft. 43 sones

Sound Level 43.0 sones @ 0.000 in SP and 5 ft, 43.0 sones @ 0.125 in SP and 5 ft, 43.0 sones @ 0.250 in SP and 5 ft, 43.0 sones @ 0.375 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Stock No. 7A914

Type Axial Upblast

Voltage - Roof Ventilators 208V AC/220V AC/440V AC
