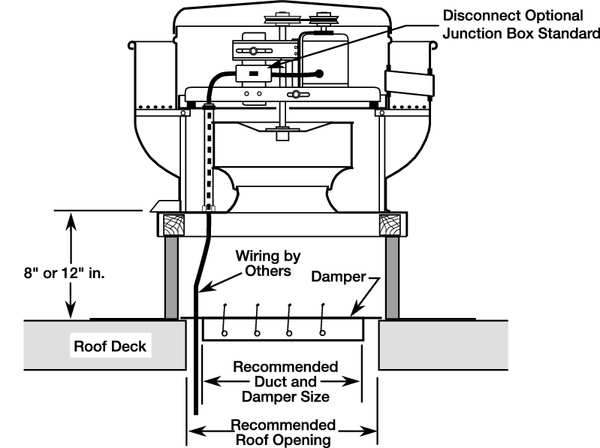

Exhaust Ventilator, Diameter 11 in.

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 1 1/4 in wc, Exhaust Airflow @ 0.000 in SP 1,260 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/4 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7DF67, mscSKU: , zoro_no: G2605467, mongo_id: 65bbe97422d7a989a9958bff

Web Price

$1,463.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61

Airflow @ 0.000 in SP 1,260 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 19 in Square

Base Height 1.8 in

Base Length 19 in

Base Shape Square

Base Size - Roof Ventilators 19 in x 19 in

Base Width 19 in

Bearing Type Sealed Pillow Block

Brake Horsepower 1/4 hp

CFM @ 0.000-In. SP 1260

CFM @ 0.125-In. SP 1209

CFM @ 0.250-In. SP 1156

CFM @ 0.375-In. SP 1100

CFM @ 0.500-In. SP 1041

CFM @ 0.750-In. SP 918

CFM @ 0.875-In. SP 846

CFM @ 1.000-In. SP 759

CFM @ 1.250-In. SP 639

Country of Origin (subject to change) Multiple

Current 6.2/2.8 to 3.1 A

Damper Size 12 x 12 in

Dimension A 19 in

Dimension B 24 7/8 in

Dimension C 25 1/8 in

Dimension D 17 3/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Exhaust Airflow @ 0.000 in SP 1,260 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 1,209 cfm

Exhaust Airflow @ 0.250 in SP 1,156 cfm

Exhaust Airflow @ 0.375 in SP 1,100 cfm

Exhaust Airflow @ 0.500 in SP 1,041 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 24.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.9 in

Includes Drive Package, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.25

Maximum Fan Speed 1,725 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 1/4 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/4 hp

Motor HP 1/4

Motor HP - Roof Ventilators 1/4 hp

Motor HP Range 1/4 hp

Motor Location Out of Airstream

Motor Speed 1,725 RPM

Motor Voltage 115/208/230

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Nameplate Voltage 115/208-230V AC

Nominal Voltage 115/208-230V AC

Number of Speeds 1

Overall Diameter 24 7/8 in

Overall Height 26 7/8 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 3/4 in

Recommended 12 In. Fixed Curb Item No. 2RB75

Recommended 8 In. Fixed Curb Item No. 4HX38

Recommended Damper Size (In.) 12 x 12

Recommended Damper Stock No. 4HX64

Requires Roof Curb for New Installation

Resistance Properties Spark Resistant

RPM 1725

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 13.8

Sones @ 0.250-In. SP @ 5 Ft. 13.4

Sound Level 10.6 sones @ 1.250 in SP and 5 ft, 10.8 sones @ 1.000 in SP and 5 ft, 11.2 sones @ 0.875 in SP and 5 ft, 11.5 sones @ 0.750 in SP and 5 ft, 11.7 sones @ 0.625 in SP and 5 ft, 12.3 sones @ 0.500 in SP and 5 ft, 12.9 sones @ 0.375 in SP and 5 ft, 13.4 sones @ 0.250 in SP and 5 ft, 13.8 sones @ 0.125 in SP and 5 ft, 14.2 sones @ 0.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC/208V AC/230V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 11 in

Wheel Diameter 11 in

Wheel Material Aluminum

Wheel Type Backward Inclined
