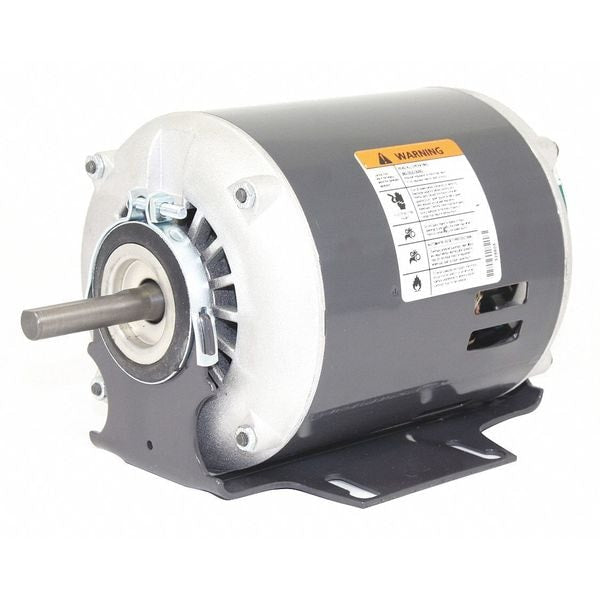

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48

SKU
Brand Dayton
Categories
Description General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 2.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
graingerSKU: 6XH61, mscSKU: , zoro_no: G1456917, mongo_id: 65bbe68b3aaddbd5a9039468

Web Price

$219.99 / each

Qty

Product Details

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 48Z

Frame Material Rolled steel

Full Load Amps 2.5 A

HP_ 1/4 hp

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 7 15/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design Split-Phase

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Type Cradle Base

Motor Service Factor 1.35

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 53.7 %

Overall Length 9 13/16 in

Package Quantity 1

Phase Single

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 7/8 in

Standards CSA (258501), UL (E47479)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
