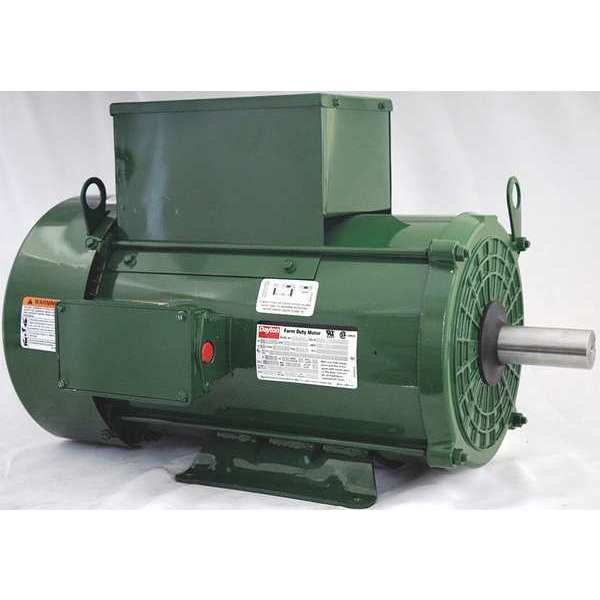

High Torque Farm Duty Motor, Capacitor-Start/Run, 10 HP, 230V AC, 1,730 Nameplate RPM, 215T Frame

SKU
Brand Dayton
Categories
Description High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 HP, Nameplate RPM 1,730, No. of Speeds 1, Voltage 230V AC, Full Load Amps 38.0 A, 215T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
graingerSKU: null, mscSKU: null, zoro_no: G1854441, mongo_id: 65bbe6f13aaddbd5a90645c1

Web Price

$3,552.49 / each

Qty

Product Details

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Green

Frame 215T

Frame Material Rolled steel

Full Load Amps 38.0 A

HP_ 10

Hz_ 60 Hz

Includes Shaft Key, Gasketed Conduit Box and Shaft Slinger

Ins. Class F

Item - Farm Duty Motors High Torque Farm Duty Motor

Length Less Shaft 18 9/16 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application High Torque

Motor Thermal Protection Manual

Nameplate RPM 1,730

No. of Speeds 1

Nominal Efficiency 86.9 %

Overall Length 22 1/16 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 1 3/8 in

Shaft Length 3 1/2 in

Standards CSA Certified (258525), UL Recognized (E47479)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
