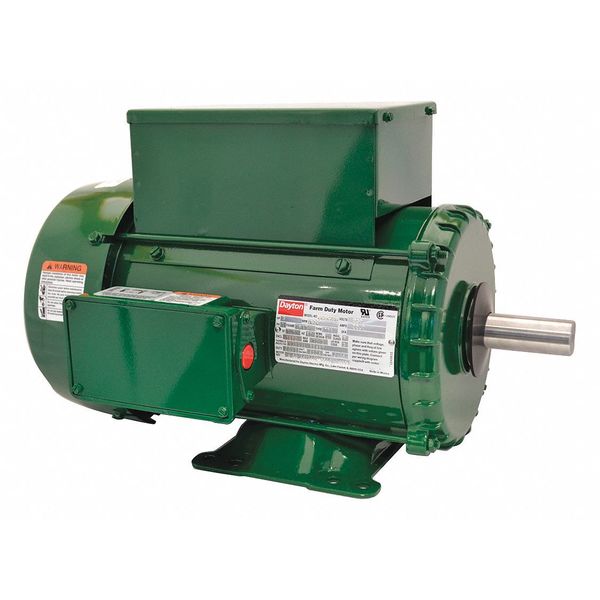

High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,740 Nameplate RPM, 182/4T Frame

SKU
Brand Dayton
Categories
Description High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.0 A, 182/4T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
graingerSKU: 6K847, mscSKU: , zoro_no: G0453680, mongo_id: 65bbe6d03aaddbd5a90560ab

Web Price

$1,496.24 / each

Qty

Product Details

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Green

Frame 182/4T

Frame Material Rolled steel

Full Load Amps 22.0 A

HP_ 5

Hz_ 60 Hz

Includes Shaft Key, Gasketed Conduit Box and Shaft Slinger

Ins. Class F

Item - Farm Duty Motors High Torque Farm Duty Motor

Length Less Shaft 15 3/8 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application High Torque

Motor Thermal Protection Manual

Nameplate RPM 1,740

No. of Speeds 1

Nominal Efficiency 82.7 %

Overall Length 18 1/8 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 1 1/8 in

Shaft Length 2 3/4 in

Standards CSA Certified (258525), UL Recognized (E47479)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
