Home / Angular Gripper, 180 Deg, Spring Closed

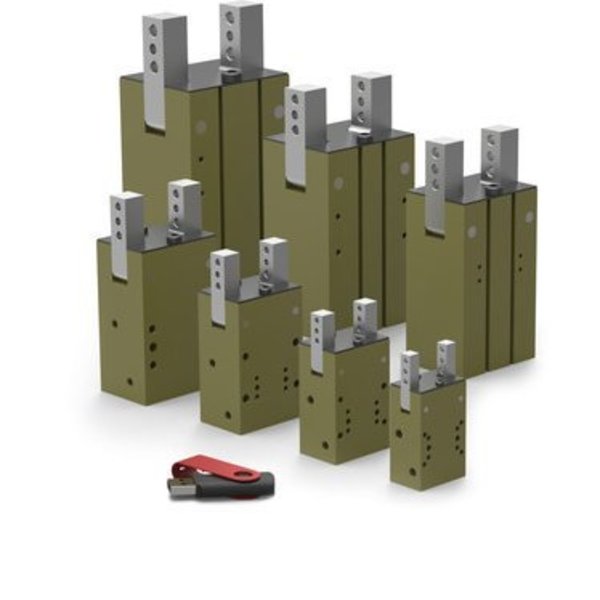

Angular Gripper, 180 Deg, Spring Closed

Angular Gripper, 180 Deg, Spring Closed

  • De-Sta-Co
  • Angular Gripper,180 Deg, Spring Closed, Series CT, Open Width 149 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 4 bar, Overall Length 66 mm, Overall Width 66 mm, Overall Height 165.5 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size 1/8 in, Air Inlet Type G, Weight 1.39 kg, System of Measurement Metric
Web Price
$3,813.74 / each
Qty

Product Details

+/-0.09 mm
G
France
52 cc
Bottom, Side
90 Degrees
1/8 in
IP43
0.47 sec
178 mm
7 bar
80 Degrees C
4 bar
-35 Degrees C
149 mm
165.5 mm
66 mm
66 mm
1
Angular Gripper,180 Deg, Spring Closed
+/-0.05 mm
Buna-N
CT
Spring Assist
Adjustable
90 Degrees
Metric
592 N
180 Degrees
1.39 kg
