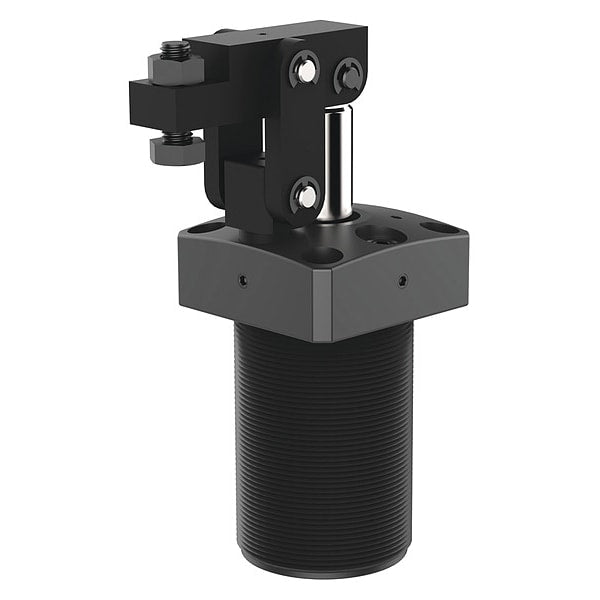

Swing and Toggle Clamp

SKU
Brand De-Sta-Co
Categories
Description Pneumatic Swing and Toggle Clamp, Aluminum, Threaded, Overall Height 6.6500 In., Application Assembly and Welding Fixtures, Light Machining, Arm Height 5.0800 In., Arm Swing Angle 81 Degrees
graingerSKU: , mscSKU: 13313150, zoro_no: G1897929, mongo_id: 65bbe6b73aaddbd5a904af1f

Web Price

$642.49 / each

Qty

Product Details

Application Assembly and Welding Fixtures, Light Machining

Arm Height 5.0800

Arm Swing Angle 81 Degrees

Body Material Aluminum

Body Type Threaded

Color Black

Country of Origin (subject to change) Taiwan, Province of China

Features Alternative Solution To Swing Clamps When Space Is Limited, Clamping Arm and Spindle Included, Forward, Non Toggle Locking Linkage, or Right (Relative to Ports) within the Same Clamp Body, The Clamping Lever May be Positioned Left

Holding Capacity 64 lbf.

Includes Clamping Arm and Spindle

Max. Input Air Pressure 7 bar

Max. Operating Temperature 175 Degrees F

Max. Vertical Clamp Stroke 0.1200

Min. Operating Temperature 14 Degrees F

Overall Height 6.6500

Overall Width 63 in

Package Quantity 1

Port Size M8

Threaded Body Thread Size M50 x 1.50

Type Lever Clamp
