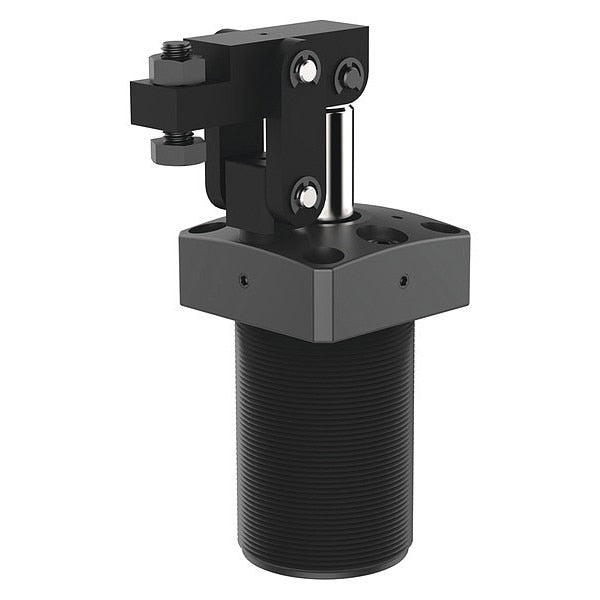

Swing and Toggle Clamp

SKU
Brand De-Sta-Co
Categories
Description Pneumatic Swing and Toggle Clamp, Aluminum, Threaded, Overall Height 6.9300 In., Application Assembly and Welding Fixtures, Light Machining, Arm Height 5-1/4 In., Arm Swing Angle 82 Degrees
graingerSKU: , mscSKU: 65466732, zoro_no: G1895235, mongo_id: 65bbea4a22d7a989a99a778d

Web Price

$718.74 / each

Qty

Product Details

Application Assembly and Welding Fixtures, Light Machining

Arm Height 5-1/4

Arm Swing Angle 82 Degrees

Body Material Aluminum

Body Type Threaded

Color Black

Country of Origin (subject to change) Taiwan, Province of China

Features Alternative Solution To Swing Clamps When Space Is Limited, Clamping Arm and Spindle Included, Forward, Non Toggle Locking Linkage, or Right (Relative to Ports) within the Same Clamp Body, The Clamping Lever May be Positioned Left

Holding Capacity 106 lbf.

Includes Clamping Arm and Spindle

Max. Input Air Pressure 7 bar

Max. Operating Temperature 175 Degrees F

Max. Vertical Clamp Stroke 0.1200

Min. Operating Temperature 14 Degrees F

Overall Height 6.9300

Package Quantity 1

Port Size M8

Threaded Body Thread Size M55 x 1.50

Type Lever Clamp
