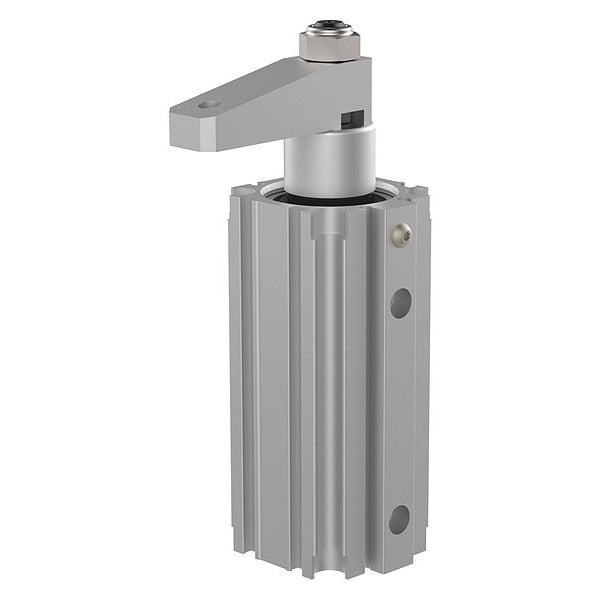

Swing and Toggle Clamp

SKU
Brand De-Sta-Co
Categories
Description Pneumatic Swing and Toggle Clamp, Threaded, Overall Height 7.3300 In., Application Assembly and Welding Fixtures, Light Machining, Arm Height 6.0900 In., Arm Swing Angle 90 Degrees
graingerSKU: , mscSKU: , zoro_no: G1894124, mongo_id: 65bbe60c3aaddbd5a90036ce

Web Price

$748.74 / each

Qty

Product Details

Application Assembly and Welding Fixtures, Light Machining

Arm Height 6.0900

Arm Swing Angle 90 Degrees

Body Type Threaded

Color Gray

Country of Origin (subject to change) United States

Features Can Be Mounted On Any Face with Optional Side Flange Mounting Kit, Ideal for Tight Spaces with An Arm Motion That Rotates at The Top Of The Stroke, Includes A Rod Weld Cover to Protect the Rod Throughout the E, Switch Ready For ÃÂ4mm or 6.5mm x 5mm Sensors

Holding Capacity 76 lbf.

Max. Input Air Pressure 8 bar

Max. Operating Temperature 140 Degrees F

Max. Vertical Clamp Stroke 0.7900

Overall Height 7.3300

Overall Width 1.9700

Package Quantity 1

Port Size M6

Standards ANSI, ISO

Swing Direction Right

Threaded Body Thread Size M6 x 120

Type Swing Clamp
