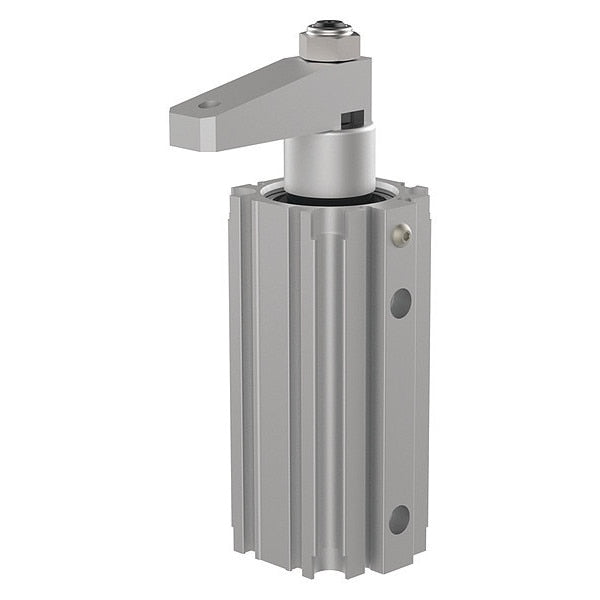

Swing and Toggle Clamp

SKU
Brand De-Sta-Co
Categories
Description Pneumatic Swing and Toggle Clamp, Threaded, Overall Height 7.5200 In., Application Assembly and Welding Fixtures, Light Machining, Arm Height 6.2900 In., Arm Swing Angle 90 Degrees
graingerSKU: , mscSKU: 39139266, zoro_no: G1893047, mongo_id: 65bbe96322d7a989a9951548

Web Price

$758.74 / each

Qty

Product Details

Application Assembly and Welding Fixtures, Light Machining

Arm Height 6.2900

Arm Swing Angle 90 Degrees

Body Type Threaded

Color Gray

Country of Origin (subject to change) United States

Features Can Be Mounted On Any Face with Optional Side Flange Mounting Kit, Ideal for Tight Spaces with An Arm Motion That Rotates at The Top Of The Stroke, Includes A Rod Weld Cover to Protect the Rod Throughout the E, Switch Ready For ÃÂ4mm or 6.5mm x 5mm Sensors

Holding Capacity 123 lbf.

Max. Input Air Pressure 8 bar

Max. Operating Temperature 140 Degrees F

Max. Vertical Clamp Stroke 0.7900

Overall Height 7.5200

Overall Width 2-1/4

Package Quantity 1

Port Size M6

Standards ANSI, ISO

Swing Direction Left

Threaded Body Thread Size M6 x 120

Type Swing Clamp
