Home / Diamond Turning Insert, Diamond, 3/8 in, CCGT, 80 Degrees, 1/32 in

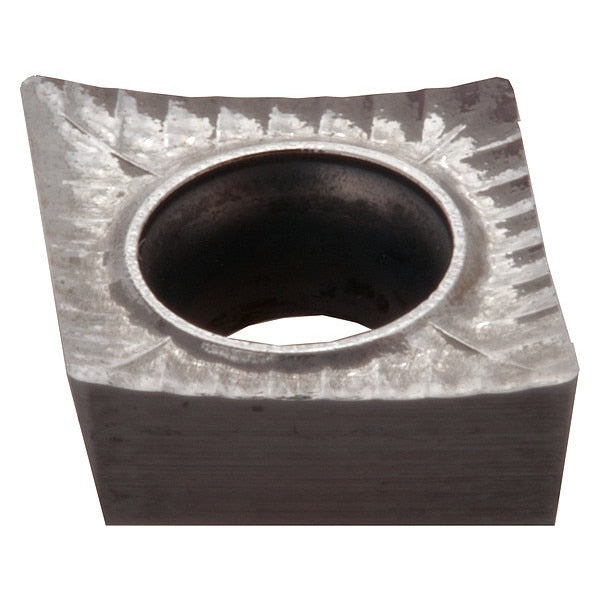

Diamond Turning Insert, Diamond, 3/8 in, CCGT, 80 Degrees, 1/32 in

SKU
Brand Dorian
Categories
Description Diamond Turning Insert, Chip-Breaker Code NFU, Inscribed Circle 3/8 in, Microplus(R) Plasma TiAlN, ANSI Code CCGT-32.52-NFU, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees , Coating Process CVD
graingerSKU: 56MA88, mscSKU: , zoro_no: G4024005, mongo_id: 65bbe75b9a749db822732831

Web Price

$31.81 / each

Qty

Minimum order: 5

Product Details

ANSI Code CCGT-32.52-NFU

Chip-Breaker Yes

Chip-Breaker Code NFU

Chip-Breaker Style On One Side

Clearance Angle 7 Degrees

Coating Process CVD

Coolant Fed Coolant Through

Corner Radius 2

Country of Origin (subject to change) Austria

Cutting Application Universal Turning

Cutting Direction Neutral

Cutting Edge Sharp

Cutting Edge Length 9.00 mm

Depth of Cut 0.0020 in to 0.1560 in

Features Abrasive Resistant and High Resistance Substrate, Best for Aluminum including Low Silicone Aerospace Aluminum as well as Plastic and Super Alloys, Coating Improves Cutting Edge Hardness as well as Wear and Heat Resistance and Chip Flow, Precision Ground Insert

Finish - Machining Microplus(R) Plasma TiAlN

General Shape Diamond

Hole Type 40 Degrees to 60 Degrees Countersink Through Hole

Included Angle 80 Degrees

Inscribed Circle 3

Insert Code CCGT332

Insert Holding Type 40 Degrees to 60 Degrees Countersink Hole

Insert Shape Diamond

Insert Style CCGT

ISO Number CCGT-09T308-NFU

Manufacturer Grade DNX10UT

Material - Machining Carbide
