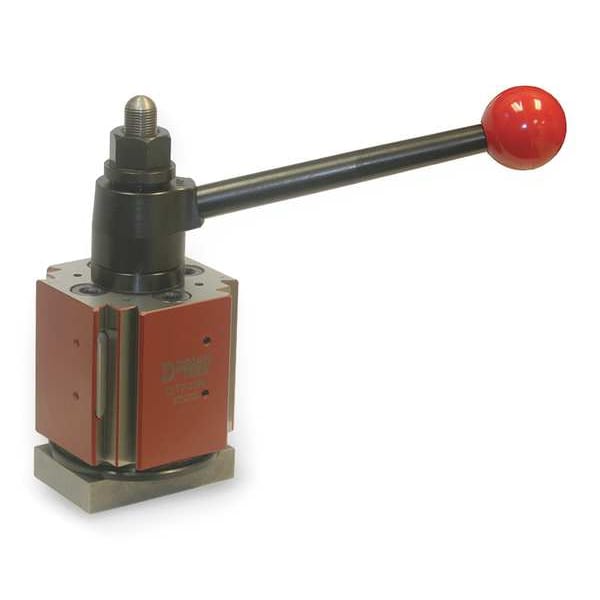

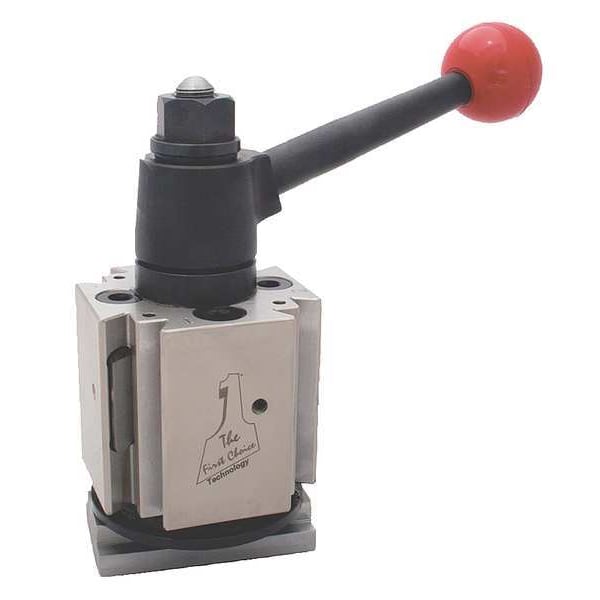

Tool Post, QUADRA, QITP25N, Up To 12 In

SKU
Brand Dorian
Categories
Description Tool Post, Quadra 4-Station, Lathe Swing Up to 12 in, Max. Centerline Height 12 in, Series QITP25N, Body Height 2.5700 in, Tool Post Height 5.2100 in, Thread Size 1/2 In.-20, Centerline-to-Body 0.8800 in
graingerSKU: 3FGF3, mscSKU: , zoro_no: G8312297, mongo_id: 65bbe8ab22d7a989a9909c5f

Web Price

$1,979.99 / each

Product Details

Body Height 2.5700 in

Capacity 1/2 to 3/4

Center Height 1.425

Centerline-to-Body 0.8800 in

Country of Origin (subject to change) United States

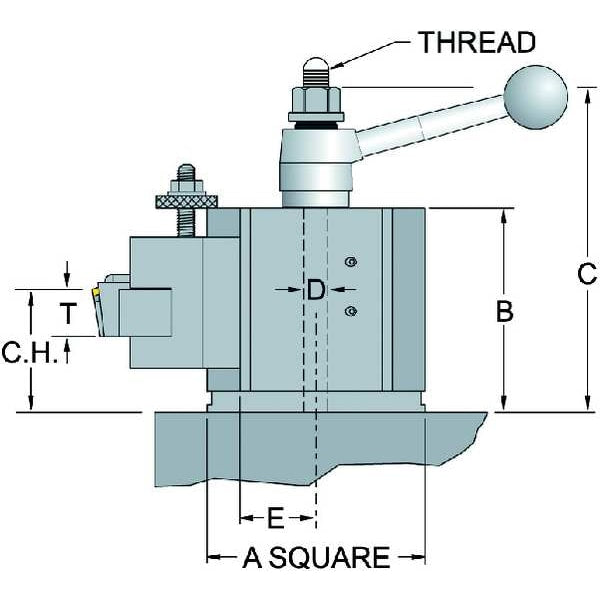

Dimension A (In.) 2.500

Dimension B (In.) 2.710

Dimension C (In.) 5.210

Dimension D (In.) 0.500

Dimension E (In.) 0.880

Dimension F (In.) 1.422

Features (2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently

For Use With QITP25N Holders

Height Adjustment 0.995 to 1.849

Includes Blank T-Nut for Customer to Machine to Own Specifications

Lathe Swing Up to 12 in

Lock Positive

Max. Centerline Height 12 in

Number of Positions 24

Package Quantity 1

Series QITP25N

Swing (In.) Up to 12

Thread 1/2-20

Thread Size 1/2-20
