Tool Post, QUADRA, QITP40N, 16-20 In Swing

SKU
Brand Dorian
Categories
Description Tool Post, Quadra 4-Station, Lathe Swing 16 in to 20 in, Max. Centerline Height 16 in to 20 in, Series QITP40N, Body Height 4.0700 in, Tool Post Height 7.5250 in, Thread Size 3/4 In.-16, Centerline-to-Body 1.5300 in
graingerSKU: 3FGF6, mscSKU: , zoro_no: G1735447, mongo_id: 65bbe75b9a749db822733249

Web Price

$3,613.74 / each

Qty

Product Details

Body Height 4.0700 in

Capacity 1 to 1-1/4

Center Height 2.200

Centerline-to-Body 1.5300 in

Country of Origin (subject to change) United States

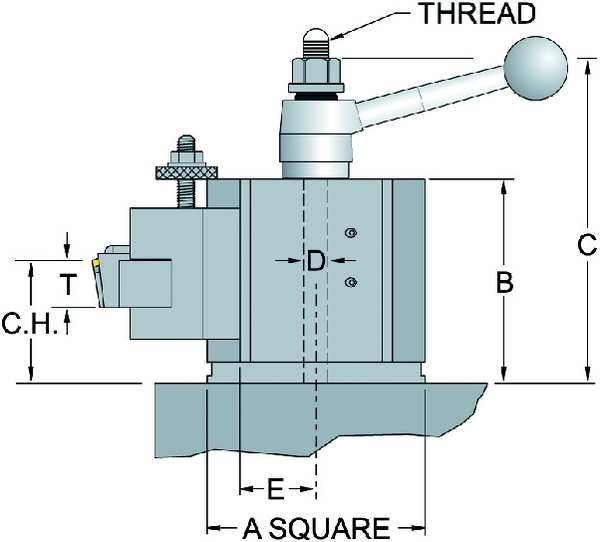

Dimension A (In.) 4.000

Dimension B (In.) 4.070

Dimension C (In.) 7.525

Dimension D (In.) 0.750

Dimension E (In.) 1.530

Dimension F (In.) 2.202

Features (2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently

For Use With QITP40N Holders

Height Adjustment 1.757 to 2.646

Includes Blank T-Nut for Customer to Machine to Own Specifications

Lathe Swing 16 in to 20 in

Lock Positive

Max. Centerline Height 16 in to 20 in

Number of Positions 24

Package Quantity 1

Series QITP40N

Swing (In.) 16 to 20

Thread 3/4-16

Thread Size 3/4-16
