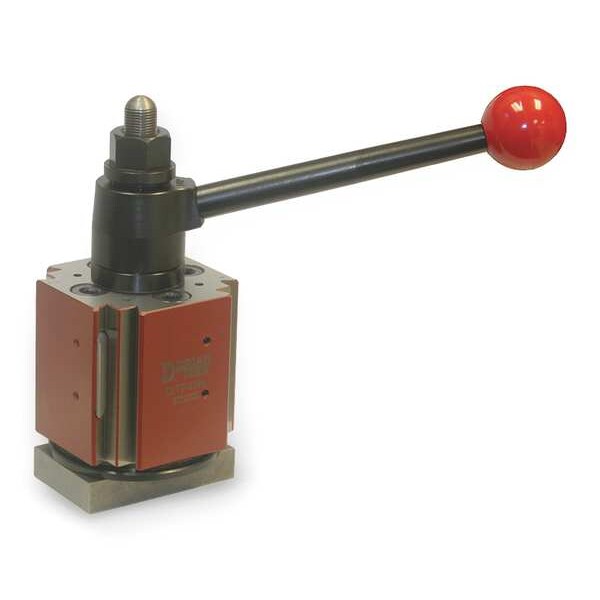

Tool Post, QUADRA, QITP60N, 25 In+ Swing

SKU
Brand Dorian
Categories
Description Tool Post, Quadra 4-Station, Lathe Swing 25 in and Over, Max. Centerline Height 25 in, Series QITP60N, Body Height 5.6150 in, Tool Post Height 9.8550 in, Thread Size 1 1/8 In.-12, Centerline-to-Body 2.2070 in
graingerSKU: 3FGF8, mscSKU: , zoro_no: G8158902, mongo_id: 65bbe6723aaddbd5a902e6d2

Web Price

$6,626.24 / each

Product Details

Body Height 5.6150 in

Capacity 1.500

Center Height 3.440

Centerline-to-Body 2.2070 in

Country of Origin (subject to change) United States

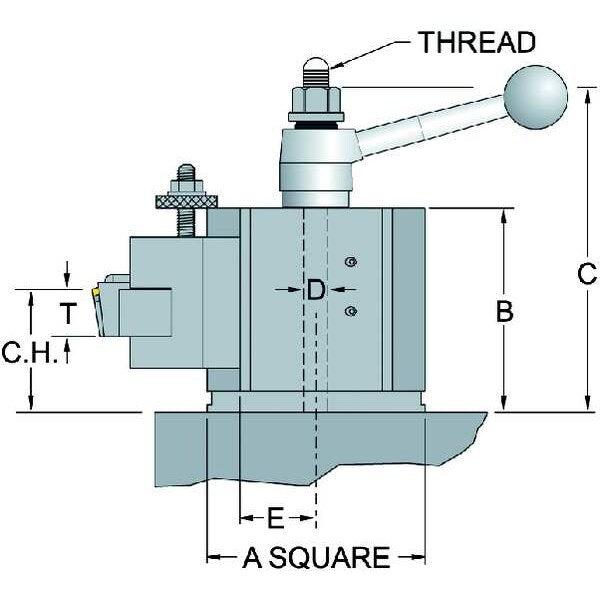

Dimension A (In.) 6.000

Dimension B (In.) 5.615

Dimension C (In.) 9.855

Dimension D (In.) 1.125

Dimension E (In.) 2.207

Dimension F (In.) 3.440

Features (2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently

For Use With QITP60N Holders

Height Adjustment 2.750 To 4.129

Includes Blank T-Nut for Customer to Machine to Own Specifications

Lathe Swing 25 in and Over

Lock Positive

Max. Centerline Height 25 in

Number of Positions 24

Package Quantity 1

Series QITP60N

Swing (In.) 25 and Over

Thread 1 1/8-12

Thread Size 1 1/8-12
