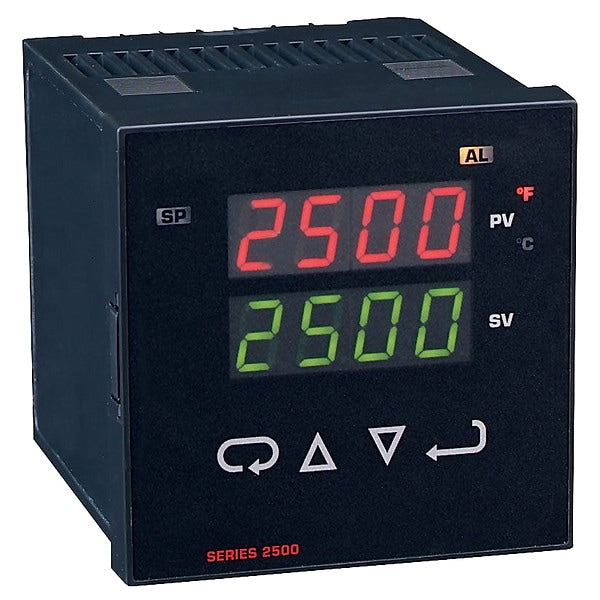

Digital Temperature Controller, 95.9 mm L

SKU
Brand Dwyer
Categories
Description Digital Temperature Controller, Digital, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function 2.5 A @ 240 VAC Resistive, Output (1) SSR, Temp. Range 14 Degrees to 131 Degrees F, Control Mode PD/Full PID, PI, Self-Tune PID, 0 to 20mA Amps, Length 95.9 mm, Width 95.9 mm, Depth 115.8 mm, Outputs Include Solid State Relay, Mechanical Relay, Programmable Alarm can Act as High or Low or High/Low Guard Band Alarm, Power Consumption 5 VA, Standards CE, cULus
graingerSKU: , mscSKU: 06875835, zoro_no: G110070389, mongo_id: 65bbe84622d7a989a98e74f9

Web Price

$1,358.74 / each

Qty

Product Details

Accuracy ÃÂ±0.25% of span, ÃÂ±1 degree.

Amps 0 to 20mA

Control Mode PD/Full PID, PI, Self-Tune PID

Control Output Ratings SSR: 2.5A @ 240 VAC resistive at 77ÃÂ°F (25ÃÂ°C), de-rates to 1.25A @ 130ÃÂ°F 55ÃÂ°C); Relay: SPDT, 10 A @ 240 VAC resistive; Switched Voltage (non-isolated) 5 VDC @ 20 mA; Proportional Isolated Current: 0-20 mA, selectable, into 600 Ohms maximum.

Country of Origin (subject to change) United States

Depth 115.8 mm

Description/Special Features Outputs Include Solid State Relay, Mechanical Relay, Programmable Alarm can Act as High or Low or High/Low Guard Band Alarm

Digital/Analog Digital

DIN Size 1/4

Display Two 4-digit, 7 segment, 0.56 high LED.

Front Panel Rating NEMA 4X (IP65).

Input Voltage 100 to 240V AC

Inputs Inputs: Thermocouple or RTD.

Length 95.9 mm

Memory Backup Non-volatile memory. No batteries required.

Operating Temperature 14 to 131ÃÂ°F (-10 to 55ÃÂ°C).

Output (1) SSR

Package Quantity 1

Power Consumption 5 VA
