Home / Digital Temperature Controller, 95.9 mm L

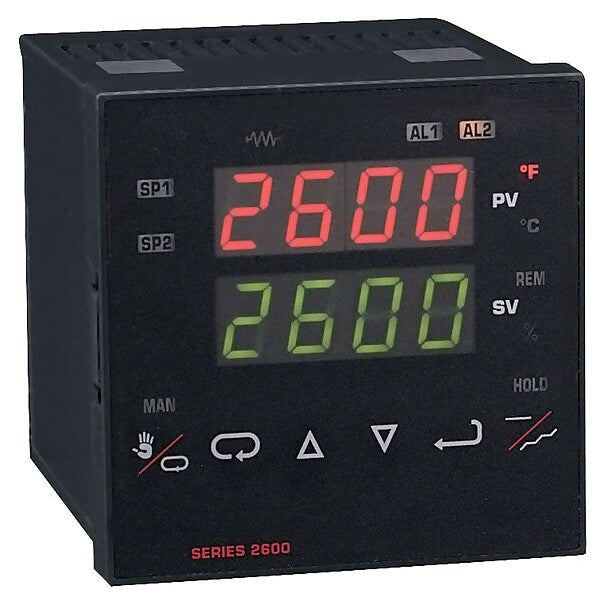

Digital Temperature Controller, 95.9 mm L

SKU
Brand Dwyer
Categories
Description Digital Temperature Controller, Digital, RTD, Thermocouple Types J, K, E, T, L, N, B, C, S, R Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function SPDT, 10 A @ 240 VAC, Output (1) Relay, Temp. Range 14 Degrees to 131 Degrees F, Control Mode Fuzzy Logic, Self-Tune PID, 10A Amps, Length 95.9 mm, Width 95.9 mm, Depth 115.8 mm

Web Price

$1,286.24 / each

Qty

Product Details

Accuracy ÃÂ±0.25% of span, ÃÂ±1 least significant digit.

Alarms Relay, 10A, SPDT

Amps 10A

Control Mode Fuzzy Logic, Self-Tune PID

Control Output Ratings Relay: SPDT, 10 A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm Relay: SPST, 3 A @ 240 VAC resistive; Proportional Current: 0-20 mA DC, scalable into 600 ohms maximum.

Country of Origin (subject to change) United States

Depth 115.8 mm

Description/Special Features 16 Segments of Ramp/Soak with Program End Control, Four Password Protected Security Levels, Front Panel Programmability, NEMA 4X (IP65) Front Panel Resists Dust & Moisture

Digital/Analog Digital

DIN Size 1/4

Display Two 4-digit, 7 segment, 0.56 (14.2 mm) high LED.

Front Panel Rating NEMA 4X (IP66).

Input Voltage 100 to 240V AC

Length 95.9 mm

Operating Temperature 14 to 131ÃÂ°F (-10 to 55ÃÂ°C).

Output (1) Relay

Package Quantity 1

Sensor Type RTD, Thermocouple Types J, K, E, T, L, N, B, C, S, R

Series Series 2600

Standards CE, cULus
